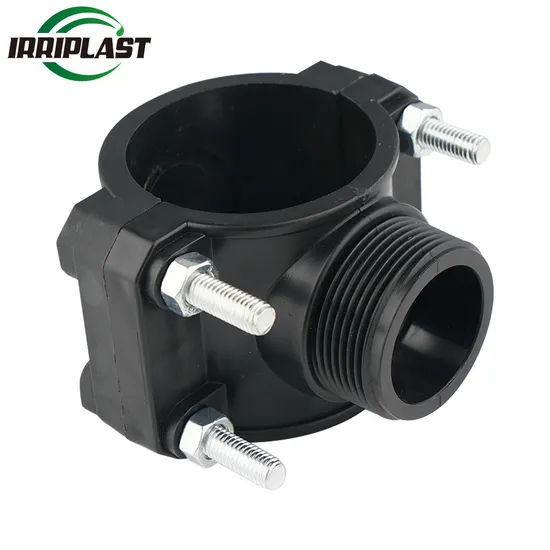

Wholesale Supplier Good Quality Raw Material Axial HDPE Male Saddle

Product Description

Wholesale Supplier Good Quality Raw Material Axial HDPE Male Saddle
Product Description
The clamp saddle line has been produced from high quality raw material and it has resistance to impact. It has been designed of side outputs on Polyethelene pipes(PE) and it is available in the following range of sizes: Item 4001/4002/4003/4004 with single or double output. They have diameters for the coupling with 20mm to 315mm pipes and threaded outputs(1/2 to 2), provided with 2 and 4 bolts according to the diameters.
Technical data

Parts	Material
Body and cover (A)	Black mastered polypropylene copolymer, with a high level of stabilization to UV
Gasket (B)	Acrilonitrile elastomeric Rubber(NBR)
Reinforcing ring (C)	Metal ring for female threaded from 1/2'' to 2''
Bolts (D)	Chromiun-plated galvanized steel screws and nuts

Description	Code	Size	Weight (g/pc)	PCS/BAG	PCS/CTN	Bolt&Nuts Number	Carton size
Male Saddle	4007	32*1/2	61	15	240	2	48*38*38cm
		32*3/4	60	15	240	2	48*38*38cm
		32*1	63	14	240	2	48*38*38cm
		40*1/2	97	12	200	2	48*38*38cm
		40*3/4	97	10	200	2	48*38*38cm
		40*1	100	10	200	2	48*38*38cm
		50*1/2	166	8	120	4	48*38*38cm
		50*3/4	166	8	120	4	48*38*38cm
		50*1	169	5	120	4	48*38*38cm
		50*11/4	176	5	100	4	48*38*38cm
		63*1/2	195	5	110	4	48*38*38cm
		63*3/4	198	5	100	4	48*38*38cm
		63*1	200	5	90	4	48*38*38cm
		63*11/2	204	4	96	4	48*38*38cm
		63*11/4	202	4	96	4	48*38*38cm
		75*1/2	253	4	88	4	48*38*38cm
		75*3/4	252	4	88	4	48*38*38cm
		75*1	255	4	88	4	48*38*38cm
		75*11/2	262	4	80	4	48*38*38cm
		75*11/4	258	4	80	4	48*38*38cm
		90*1/2	288	2	64	4	48*38*38cm
		90*3/4	287	2	64	4	48*38*38cm
		90*1	289	2	64	4	48*38*38cm
		90*11/2	295	2	64	4	48*38*38cm
		90*11/4	292	2	64	4	48*38*38cm
		110*1/2	355	1	48	4	48*38*38cm
		110*3/4	356	1	48	4	48*38*38cm
		110*1	358	1	48	4	48*38*38cm
		110*11/2	364	1	48	4	48*38*38cm
		110*11/4	365	1	48	4	48*38*38cm

Sanitary Prescripyions
The clamp saddle line is fit for conveying food fluids because its materials are conform to the national and international standard in force.
Working pressure
The clamp saddle line allows a maximum working pressure from 4 to 16 bar, at temperature of 20 ºC. Reference Standard
Pipes: UNI7990, DIN8074, UNI EN12201
Threads: UNI ISO7/1, UNI ISO228/1, ANSI ASME B1-20.1
International standard: ISO 13460
Application
1. Structure Engineering
2. Water supply system
3. for Agriculture Irrigation Main Products
