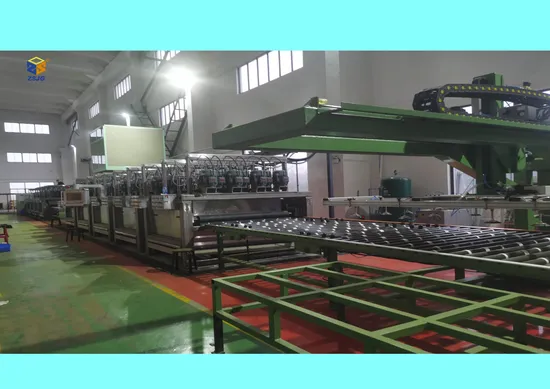

Mirror Finishing Machine for Cold Rolling Coil and Sheet

Product Description

Mirror Polishing Machine is used to polish Sheet or plate of Stainless Steel up to Highly Reflective Mirror Effect. The surface receives a uniform and directionless gloss with a magnificent brilliance.
After Grinded in Grinding Section, Sheets will feed into the polishing section. Polishing compound is evenly distributed to the flat surface of the sheets or plates, which will be polished with Rotating Buffing Felts until the surface reaches a highly reflective level.
Polishing Compound feeds the work pieces continuously from the source and then is filtered & recycled by the assistant filtering system, which will afterwards, feeds the cleaned compound back to its source for reuse.
After Polishing is done, work pieces will be processed by the following cleaning & drying unit before they are laminated with Protective Film for usage or further treatment.
Super Mirror Finishing Can be get from this machine in one pass.
Pinch roll type. It applies resin bonded grinding wheel, Scotch-Brite disc, polishing compound comprising of 5% Al2O3 + 5% nitric acid + 90% water to improve the surface roughness step by step, finally super mirror finishing can be obtained (8K).
Machine data

Material type:		Stainless steel sheet
Min / Max material thickness:	mm	0.5-4
Strip width min/max:	mm	600 - 1600
Line configuration		6 rough + 9 finishing

- Environment Friendly, Liquid compound will be recycled and reused, No Compound
leakage or Splash.
- High Working efficiency, Low Operation Cost.
- Compact Design, Machine parts are free from being etched by Polishing Compound.
- Stable Oscillation System, Vibration lines are avoided
- Adjustable Transmitting Speed, Forward and Backward Transmission
-Adjustable Polishing Pressure
- Fast Change of the Polishing heads
- Large Polishing head with High RPM
- Automatic thickness Adjustment, With Manual Assistance
- Perfect Cleaning & Drying Unit, No Water mark or dirt is left after Laminating
- Large Machine Space for Maintenance and Repairing.
- Easy Operation
-- Polishing heads of each group can be independently or integrally lifted up and down.
- Center refilling of polishing compound to avoid surface underneath the polishing disc get burnt
- Stainless steel made, anti - corrosion and long life
- High precision guide for smooth movement
The reflectivity of Super Mirror creates light and space and is easily fabricate, it has reflectivity of Glass Mirror, but unlike Glass Mirror, It will not cause the so-called Light Pollution, Which is why it is widely used in Modern Society.
Typical Application of Mirror Polished sheet is: elevator, escalator, interior cladding, building facades, Medical & Chemical purpose etc.
Mirror Polished Sheets or plated can be further treated with Etching, PVD or other processes.
