1000kgs Precast Concrete Shutterin Mgagnet Precast Permanent Magnet Box Magnetic

Product Description

10 Years Experience Taiyuan Magnet Manufacturer
10 Years Magnet Custom Super Strong Round Disc Small Automotive Office N52 Permanent Motor Neodymium Magnet For Sale
Free Sample and Trial Order are Most Welcome
Made in China Magnet and Magnet Assemblies Supplier
Each of your transaction will be well protected!!!
Please contact us now!!!
Industrial Price Shuttering Magnets Precast Concrete Magnet for Sale Products Description

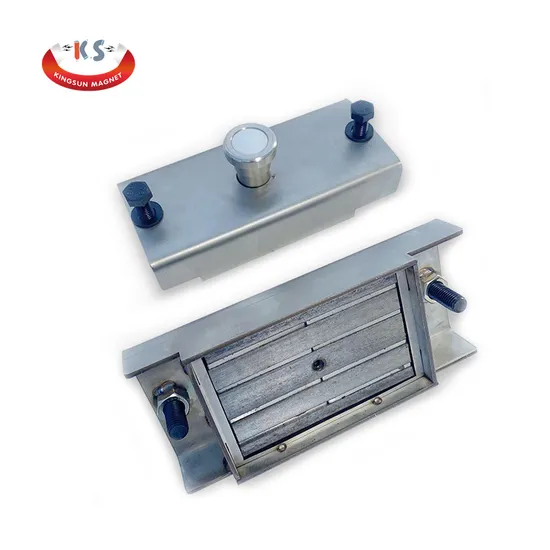

Magnetic Boxes For Precast Concrete Industry
Item No	Adhesive force
C-450	450KG
C-900	900KG
C-1350	1350KG
C-1800	1800KG
C-2100	2100KG
C-2500	2500KG

Magnetic Boxes For Precast Concrete Industry
Item No	Adhesive force
H-1	1000KG
H-2	1600KG
H-3	2000KG
H-4	2500KG
H-5	3000KG

Magnetic Boxes For Precast Concrete Industry
Itemno	Adhesiveforce
A-1	600KG
A-2	400KG

Magnetic Boxes For Precast Concrete Industry
Item No	Adhesive force
S-600	600KG
S-800	800KG
S-900	900KG
S-1000	1000KG
S-1300	1300KG

Magnetic Boxes For Precast Concrete Industry
Item No	Adhesive force	Item size	Screw thread
E-1.3t	50KG	D60*27mm	M8
E-2.5t	100KG	D74*33mm	M10
E-5.0t	120KG	D94*42mm	M10
E-10.0t	190KG	D118*53mm	M12

Precast concrete magnets are a useful and a high tech method of fixing formwork to the casting bed. They are made from rare earth materials, which give higher pull off strengths than other magnet materials. The magnets are designed so that the magnetic portion is layered with steel to spread the magnetic flux and thereby increase the contact area. Housings then surround the magnet to protect against damage, or the steel may be used to bolt a housing to the magnet. Care should be taken when using the magnet to ensure the base is clean and free from debris. This debris causes a loss of strength due to a large air gap forming between the magnet and the bed. Recommend Products Feedback
Company Profile Product Process FAQ Frequently Asked Questions
Q: What are neodymium magnets? Are they the same as "rare earth"?
A: Neodymium magnets are a member of the rare earth magnet family. They are called "rare earth" because neodymium is a member of the "rare earth" elements on the periodic table. Neodymium magnets are the strongest of the rare earth magnets and are the strongest permanent magnets in the world.
Q: What does the "N rating", or grade, of the neodymium magnets mean?
A: The grade, or "N rating" of the magnet refers to the Maximum Energy Product of the material that the magnet is made from. It refers to the maximum strength that the material can be magnetized to. The grade of neodymium magnets is generally measured in units millions of Gauss Oersted (MGOe). A magnet of grade N42 has a Maximum Energy Product of 42 MGOe. Generally speaking, the higher the grade, the stronger the magnet.
Q: What is the difference between the different platings and coatings?
A: Choosing different coatings does not affect the magnetic strength or performance of the magnet, except for our Plastic and Rubber Coated Magnets. The preferred coating is dictated by preference or intended application. More detailed specifications can be found on our Specs page.
♦ Nickel is the most common choice for plating neodymium magnets. It is actually a triple plating of nickel-coppernickel. It has a shiny silver finish and has good resistance to corrosion in many applications. It is not waterproof.
♦ Black nickel has a shiny appearance in a charcoal or gunmetal color. A black dye is added to the final nickel plating process of the triple plating of nickel-copperblack nickel.
NOTE: It does not appear completely black like epoxy coatings. It is also still shiny, much like plain nickel plated magnets.
♦ Zinc has a dull gray/bluish finish, that is more susceptible to corrosion than nickel. Zinc can leave a black residue on hands and other items.
♦ Epoxy is basically a plastic coating that is more corrosion resistant as long as the coating is intact. It is easily scratched. From our experience, it is the least durable of the available coatings.
♦ Gold plating is applied over the top of standard nickel plating. Gold plated magnets have the same characteristics as nickel plated ones, but with a gold finish.
