High Accuracy Electronic Truck Scale Weighbridge with OIML Standard 80t-120t

Product Description

High accuracy Electronic Truck Scale Weighbridge with OIML Standard 80t-120t
- Quick Overview - > Legal for trade NTEP certified and electronic system
> Different length and width possible
> Long-lasting mechanical
> Sample, uncomplication installation preparation
> Minimal maintemance and maintemance cost
- Specifications -

Model Name	OPT-SD-HD Series Industrial Heavy Duty for Toughest Enviroments	OPT-SD-MD Series Light to Medium Commerical Applications
Max Capacity	150 t	80 t
CLC Max Capacity (Concentrated Load Capacity)	60 t	30 t
Width	3m - 4.2 m
Length	6m - 36m
Module Length	3m - 5.5m
Overall Profile	400mm ( Low profile available )
Clearance	130 mm
Deck Plate Thickness	10 mm	8 mm
Weighbridge End plates	20 mm x 280 mm	13 mm x 280 mm
Inner Supports	25mm thick slab plates (6 per module)	20mm thick slab plates (6 per module)
Finish	Baked Primer & Baked All-over Powder Coating
Load cell Type	Double ended, Compression canister Alloy steel load cell, Analog alloy steel output
Load cell Capacity	30 t - 50 t
Load cell Cable	Stainless Steel Sheathed for waterproof plus extra shroud for rodent protection	Polymer Coated cable
Junction box	NEMA 4X Stainless Steel, Cable strain reliefs
Summing card	6 - 14 cell boards with surge protection & Sectional Adjustment
Installation Type	Est. Shipping Weight
Est. Shipping Weight	10600 kg (3m x 18m reference only)	8200 kg (3m x 18m reference only)
Warranty	5 Years covering weighbridge 1 years covering junction box and load cell
Certification	NTEP, Class III L, CC# 17-034

Multi-Axle Truck Scales - Fast Axle Weighing

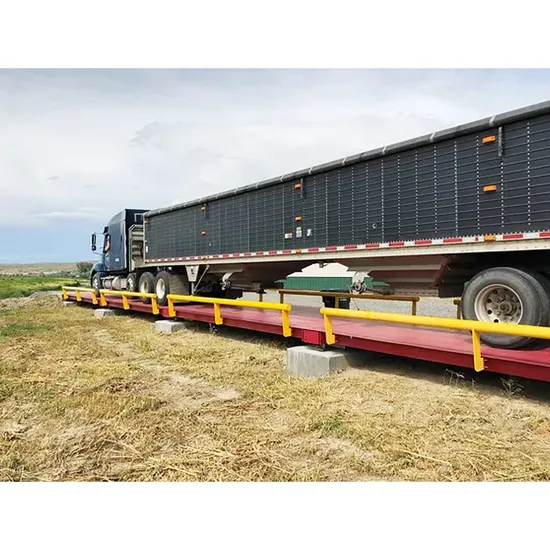

- Installation -
- Company Profile -
- Production -
- Certification -
- Exhibition -
- Packing & Shipping -
FAQ:
Q:Are your company a trading one or a factory?
A:Factory and trading combo. More than 15 years focusing on truck scale and industrial scales, full exporting experience.
Q:After an order is placed, when to deliver?
A:Generally within 15-20days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:Our products are guaranteed for 1 years and we provide life-long service. The professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.Q: Is Available to print customer required logo on your product ?
A: Sure. OEM and ODM are welcomed. We will provide the private label for you.Q: What is your payment term?A: 30% T/T in advance, 70% balance when receiving B/L copy.
