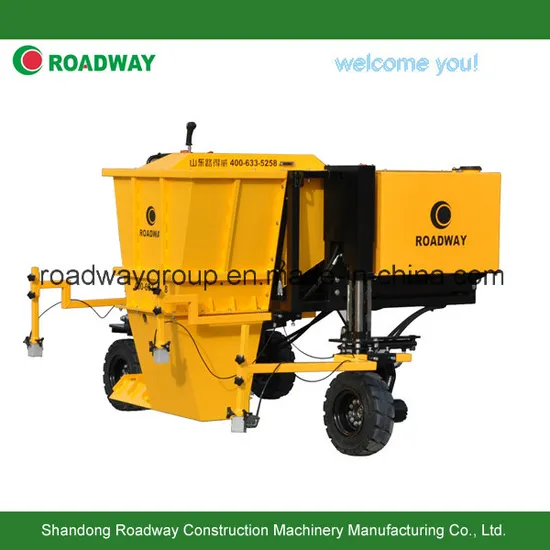

Advanced Automatic Slipform Curb Paver Machine for Efficient Road Construction
| US$9,240.00-17,160.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RWHM31
Machining Process
Hydraulic
Structure
Cylinder Type
Feeding Height
1400mm
Certification
CE
Condition
New
Color
Yellow
Transport Package
Plywood Package
Specification
800mm width*450mm height
Trademark
ROADWAY
Origin
China
HS Code
84748020
Production Capacity
50sets/Month
Product Description
Automatic Curb Paver RWHM31 With HONDA gasoline engine With imported Danfoss hydraulic variable plunger pump Integrated micro computer control panel, easy operation Forward, Reverse and Steering all controlled by control lever, easy operation With hydraulic rod, high frequency and strong power With high sensitivity tilt sensor, to control direction With imported U.S.A Eaton driving motor With hydraulic high pressure washing pump, can clean machine any time With imported Germany DEUTSCH connectors, waterproof and dustproof| Type | RWHM31 |
| Engine | |
| Model | HONDA GX630 |
| Type | Gasoline Engine, air cooled, two cylinder |
| Power | 20hp/3600rpm |
| Fuel tank volume | 60L |
| Lubricant L | 1.5L |
| Fuel consumption | 313g/kWh |
| Traveling system | |
| Driving | Hydraulic motor |
| Wheel | Solid puncture-proof tyre |
| Speed | 0-70m/min |
| Vibration system | |
| Vibrating rod | Hydraulic vibrating rod |
| Nominal amplitude | 1.5mm |
| Vibrating frequency | Adjustable |
| Exciting force | 11kN(under 10000rpm) |
| Control system | |
| Control mode | Auto/Manual |
| Automatic control | Steering, Transverse slope and Longitudinal slope by high accuracy sensor |
| Clean system | |
| Power | Hydraulic motor |
| Theoretical flow | 20L/min |
| Theoretical pressure | 7Mpa |
| Working | |
| Speed | 0-15m/min |
| Mold size | Width 100cm*Height 60cm |
| Dimension | |
| Overall dimension | 2610x1970x1500mm |
| Weight | |
| Weight | 1200kg |
