High Precision CNC Surface Grinding Machine FSG2550CNC

Product Description

Product Description
CNC High Precision Surface Grinding Machine FSG-2550CNC

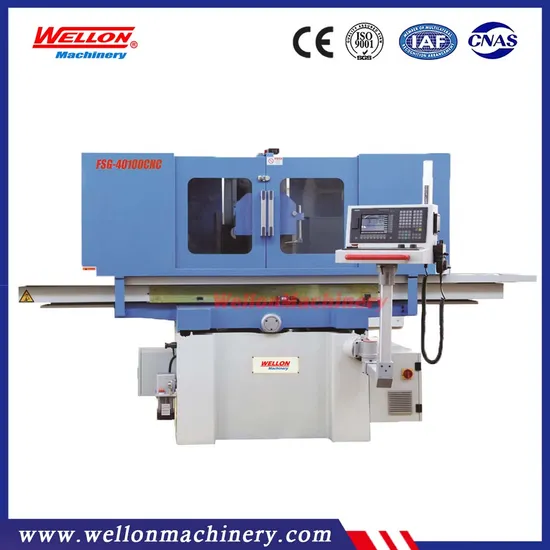

Detailed Photos
Product Parameters

Features:
2-axis(YZ) or 3-axis(XYZ) CNC control can be choosed for saddle moving grinder. SYNTEC,SIEMENS, FANUC controller are recommended.
Elaborately-designed closed safe guard with safety-switch,not only have good appearance but also safety operating field.
Precision grind spindle with preload high precision angular ball bearing and drive by V3motor,runs in maintenance-free, low vibration, and no
noise.
CNC-2 model: YZ axis numerical control and linkaged, drove by AC servo motor and ball screw. X axis drove by hydraulic.
CNC-3 model: XYZ axis numerical control and linkaged, drove by AC servo motor and ball screw.
Technical parameter:

Model	Unit	FSG2550CNC
Table size	mm	250*500
Magnetic chuck size	mm	250*500
Distance from spindle center to table	mm	450
Max loading capacity	Kg	200
Feed speed	mm/min	0.02~18/CNC-3 (5~25/CNC-2)
Micro feed rate	mm	0.005/CNC-3 (--/CNC-2)
Feed speed	mm/min	0.1~1000/CNC-3
Micro feed rate	mm	0.005/CNC-3
Feed speed	mm/min	0.1~1000
Micro feed rate	mm	0.005
Spindle Rotating speed	r/min	2850/3450
Grind wheel size	mm	200x20x31.75
Spindle motor power	kw	2.2
Floor space	mm	2800x2000
Gross weight	kg	1900
Packing size	cm	220x200x215

Standard accessories:

Siemens 808D controller	Balancing arbor
Wheel flange	Coolant tank
Wheel exactor	Tools box and tools
Working lamp	Standard electrical magnetic chuck
Wheel dresser stand	Leveling wedge and bolt

Optional accessories:

Dust collector

Balance stand

Wheel flange

Magnetic separator

Paper filter

Magnetic separator and paper filter

Parallel dresser
