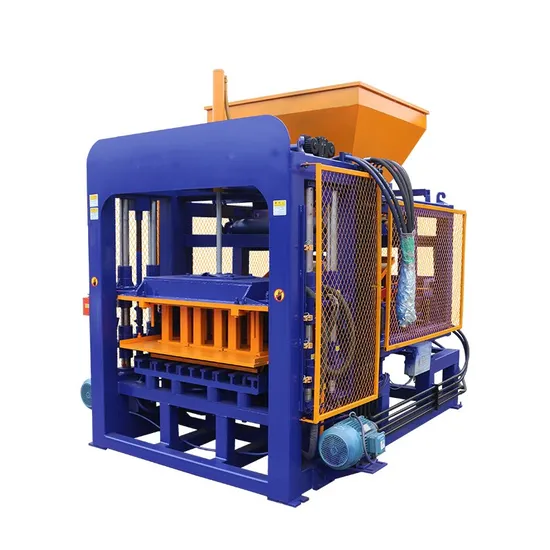

Automatic Cement Concrete Hollow Paver Block Brick Making Machine Price for Sale
Basic Info.
Model NO.
QT5-15
Certification
CE, ISO
Customized
Customized
Automatic Grade
Automatic
Type
Vibration Molding
Work Method
Hydraulic Pressure
Raw Material
Sand, Stone, Cement, Stonedust
Block Type
Hollow Concrete Brick Machine
Product Name
Automatic Concrete Making Machine
Name
Hydraulic Block Machine
Products
5PCS/Mould
Keywords
Automatic Cement Block Moulding Machine
Pallet Size
1020*570mm
Brick Type
Hollow Brick Concrete Brick Hole Brick
Molding Cycle
15-20s
After Warranty Service
Video Technical Support
Warranty Service
Online Support
After-Sales Service Provided
Free Spare Parts
Advantage
Automatic Hydraulic Block Production Line
Machine Type
Fully Automatic Brick Block Making Machine
Transport Package
Shipping by Sea
Specification
4350*2200*2650mm
Trademark
SHENGMING
Origin
China
HS Code
8474802000
Production Capacity
30set/Month
Packaging & Delivery
Package Size
3800.00cm * 1800.00cm * 2500.00cm
Package Gross Weight
6000.000kg
Product Description
QT5-15 automatic cement concrete hollow paver block brick making machine price for sale| Total rated power | 86.8KW | Block yard area | 200M2 |
| Daily capacity | 9600 pieces | Power voltage | 380V/220V AC |
| Pallet quantity | 1500-2000 pieces | Labor quantity | 4-6 people |
| Water consumption | 6-10T/day | Forming period | 15S-20S |
Introduction
| QT5-15 main features and advantages QT5-15 block machine is the latest program-controlled concrete block forming machine developed by the company. Its body design refers to qt4-15. By replacing larger vibration system, it can not only produce hollow bricks, solid bricks and tiles, but also produce curbs. The product range is constantly expanding. The main features are as follows: 1. The whole process of the machine is controlled by PLC and driven by hydraulic system. The degree of automation is obviously improved, and it is easy to operate and maintain. 2. All electrical and hydraulic parts are imported with original packaging or Chinese famous brand. Therefore, the performance of the machine is stable and has few faults. 3. The machine adopts self-developed vibration system and high-efficiency frequency conversion system to realize low-frequency discharging and high-frequency vibration 4. The electrical system adopts domestic and foreign first-line brands, such as Siemens, etc., to ensure the stability of machine performance and durability 5. The machine can produce different bricks by changing the mold, which really realizes the multi-purpose of one machine. 6. The machine vibration system and mold control system adopt advanced synchronous design, which truly realizes zero error of products. |
QT5-15 automatic cement concrete hollow paver block brick making machine price for sale
(1) Q: what is the material for this machine ?
A: you can use concrete material, plus a little cement.
(2) Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.
(3) Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years
(4) Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.
