Z3050 China Cheap Radial Drilling Machine Price

Z3050 China Cheap Radial Drilling Machine Price

US$9,000.00
1-4 Set
US$8,000.00
5+ Set

Basic Info.

Model NO.
Z3050
Type
Milling Machine
Object
Other
Structure
Other
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Other
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine Type
Radial Drilling Machine
Max.Drilling Capacity
50mm
Spindle Head Travel
1250mm
Spindle Travel
315mm
Spindle Taper
5no.
Spindle Speed
25-2000r/Min
Range of Spindle Feed
0.04-3.2mm/R
Arm Travel
580mm
Arm Lift Speed
1.2m/Min
Arm Swing Angle
180degree
Drilling Depth Per Revolution Dial
122mm
Max. Torque of Spindle
500n.M
Max. Force of Spindle
18000n
Main Motor Power
4kw
Arm Lift Motor Power
1.5kw
Transport Package
Wooden Cases
Specification
2500*10700*2880mm
Trademark
HAIDI
Origin
China
HS Code
8459590000
Production Capacity
30 Sets/Month

Product Description

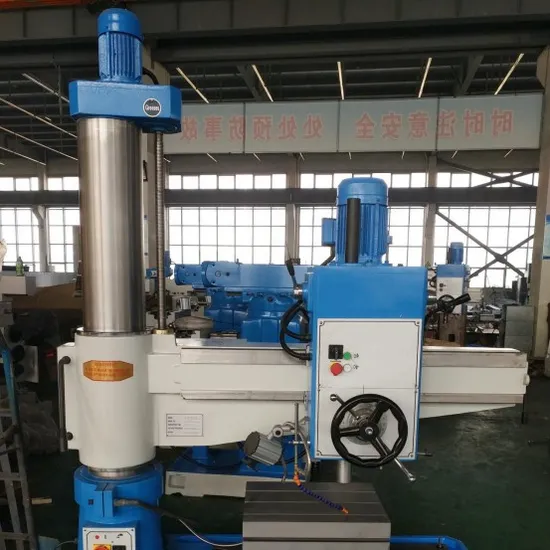

Product Picture
Specification Parameter
Specification Unit Z3040 Z3050 Z3080 Z30100 Z30125
Max.drilling capacity mm 40 50 80 100 125
Distance from spindle center to column axis Max. mm 1200 1600 2530 3150 4000
Min. mm 330 350 530 570 600
Spindle head travel mm 870 1250 2000 2580 3400
Distance from spindle nose to work base Max. mm 1000 1220 2000 2500 2500
Min. mm 260 370 550 750 750
Spindle travel mm 270 315 450 500 560
Spindle taper No. 4 5 6 6 80
Spindle speed r/min 75-1220 25-2000 16-1250 8-1000 6.3-800
Spindle speed steps 6 16 16 22 22
Range of spindle feed mm/r 0.1-0.25 0.04-3.2 0.04-3.2 0.06-3.20 0.06-3.20
Spindle feed steps 3 16 16 16 16
Arm travel mm 580 580 1000 1250 1250
Arm lift speed m/min 1.3 1.2 1 0.61 0.6
Arm swing angle ° ±180 ±180 ±180 ±180 ±180
Drilling depth per revolution dial mm 115 122 151 170 170
Max. torque of spindle N.m 300 500 1568 2450 3136
Max. force of spindle N 6300 18000 35000 45000 49000
Main motor power Kw 2.2 4 7.5 15 18.5
Arm lift motor power Kw 0.75 1.5 3 3 3
Worktable size mm 400*560 500*650 800*1000 800*1250 800*1250
Machine weight Kg 1600 3500 10500 20000 28500
Machine dimension mm 1800*760*2100 2500*1070*2880 3730*1400*3835 4650*1630*4425 5817*2000*5120

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.


Exhibition Photos
Certificate
Packing&Shipping
FAQ
