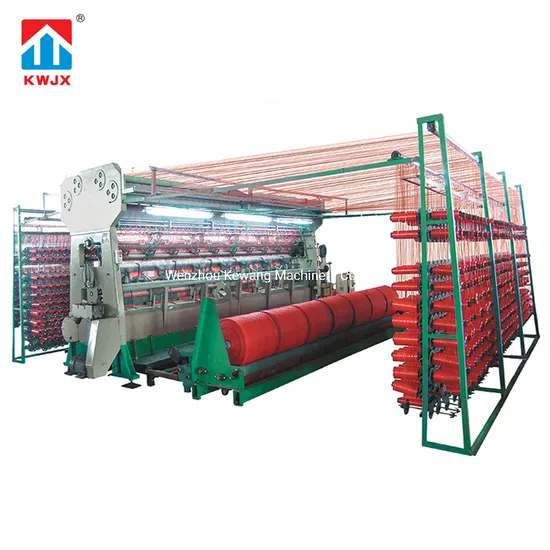

Double Needle Bar Weaving Machine for Mesh Bag Raschel Sack

Product Description

Double Needle Bar Plastic Warp Knitting/Weaving Machinery Manufacturer Company Introduction: Our company specializes in R&D and production of warp knitting machine and circular loom, which mainly including JBZ series double-needle bar shade net warp knitting machine, JBZ series double-needle bar mesh bag warp knitting machine, SRM series single needle bar net knitting machine, GE2291B high-speed double-needle bar short-pile knitting machine, GE288 medium-staple knitting machine, JBH multi-shuttle knitting machine and circular loom. Pkistan, Vietnam, Thailand and ect. Certified to ISO14001: 2004 Environmental Management System and ISO9001: 2008 Quality Management System Performance and Characteristics: JBZ Series Knitting machine is suitable to manufacturing raschel bag by using PP, PE, HDPE as raw materials. It's an ideal choice of weaving machine for knitting industry. If you don't want produce raschel bag and you can produce shade net by this machine, the machine can produce double layer shade net. If your machine is JBZ258(6m machine ), it can produce shade net width less than 12Mter. Service: 1. We can provide service and support for you specially 2. A full factory planning solution 3. Technology and Quality Control 4. Employee training: We accept staffs and workers training in China. 5. After-sales service of machines: The supplier is responsible for installation and debugging. 6. Main and Key material supply
Main Technical Parameters:

Model	JBZ170"	JBZ216	JBZ260" (hot)
	Raschel Double bar Warp Knitting Machine
Needle type	Latch needle
Gauge	E2, E3, E6(needles/inch)
Working width(mm)	4000mm	5000mm	6000mm
Number of bars	4 bars
Let -off mechanism	Ground comb adapt 3-roll roller for active let-off, pattern comb is used for passive let-off.
Batching Device	Free-standing batching device, max. Take-up diameter is 1200mm
RPM.	350--400RPM
Motor	Main motor: 5.5kw	Main motor: 7.5kw	Main motor: 7.5kw
Production Capacity(For raschel bag)	About 6000-8000PCS/24hrs (for size 50cm*80cm)	About 10000-15000PCS /24hrs (for size 50cm*80cm)	About 16000-20000PCS/24hrs (for size 50cm*80cm)
Production Capacity(for shade net)	300-400kg/24hrs	500-600kg/24hrs	800kg-1100kg/24hrs
Machine size(mm)	6200×1600×2200(L×W×H)	7200×1600×2200	8500×1600×2200
Installation size(mm)	6800×7000(L×W)	7800×7000	9000×7000
Weight (kg)	9000kg	11000kg	12000kg

Machine and Patents photos:
Product Sample:
Packing & Delivery :
Our Service

Warranty
* 1 year warranty
* Any part of electronic ,if it's not cause by man-made reasons,we will ship you a free new one.
* If beyond warranty,we offer free repair service,Clients need undertake ship cost
After-Sales Service
* Training how to instal the machine, training how to use the machine.
Engineers available to offer service overseas.but client please undertake travelling expenses for them.
FAQ Q: Are you trading company or manufacturer ?
A: We are factory which have export right. We have exported our machine to so many countries like Pakistan,Malaysia Indonesia,Philippines,Egypt,Turkey,Russia,Ukraine,Serbia,Moldova&Colombia. Q: How long is your delivery time?
A: Generally it is 10-15 days after getting deposit.
Q: What is your terms of payment ?
A: Usually 30% T/T in advance ,balance before delivery.
