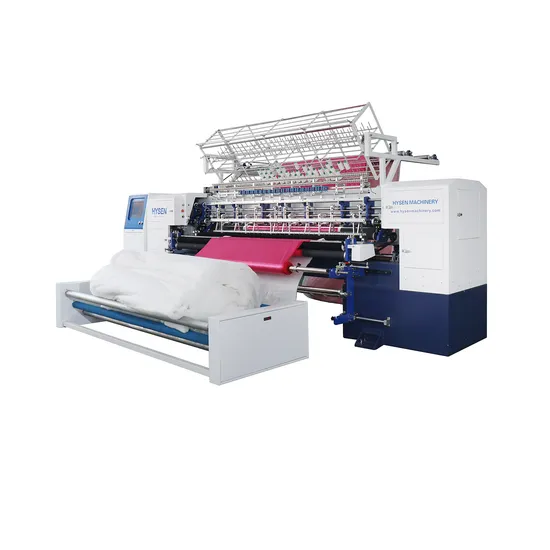

High Speed Shuttle Quilting Machine Computer Mattress Machine

Product Description

Product Description
HSY64 Computerized shuttle quilting machine, the needle rows are constructed with iron bar frame, no need to add oil to avoid oil contamination of fabrics. This structure is more solid and not easy to be damaged, low maintenance cost. The saddle frame and roller are servo-driven. The main shaft adopts frequency conversion control device. Computerized speed control, needle speed up to 1000 r/m, stitch length 2mm-6mm set at will. Multiple times across quilting (covering 360 degree and 180 degree quilting patterns) Advanced and practical thread breakage detection technology for the surface thread, automatic stop function for thread breakage. Hand feeling close to infrared sensor, make your operation safer. Adopt CAD drawing method, precise graphics, convenient and quick. Running status detection and prompting, the operation of the machine is clear at a glance. Four-axis drive machine is more solid performance is more stable.
Product Function
1.The needle row adopts a needle bar frame structure and without refueling to avoid greasy fabric.Moreover, the structure is solid and not easily damaged, low maintenance costs.
2.Advanced and practical up thread-break detection technology,auto-stop when thread-breaking.
3.The saddle and roller are driven by servo and the main shaft is controlled by frequency converter.
4.The four-axis actuator is more solid and stable performance.
5.Easy preparation of CAD drawings extremely precise. Product Parameters

Model	HSY64
Dimension(l*w*h)	3750x2450x2550mm
Quilting Width	3300
Space Between Needle Rows	76.2
Space Between Needles	25.4
X-axis Movement Displacement	305
Quilting Thickness	≤30mm
Stitch Length	2‐6
Production Speed	70-180m/h
Model of Needle	14#/16#/19#
Main Shaft Speed	400-1000RPM
Power	6KW
Volatge	380V/50H 220V/60H
Gross Weight	4000Kg

Product Details

Advanced and practical up thread-break detection technology,auto-stop when thread-breaking.	The saddle and roller are driven by servo and the main shaft is controlled by frequency converter.
Multiple cross quilting (covering 360-degree and 180-degree quilting patterns)	Easy preparation of CAD drawings extremely precise.

Application Range:Mattress,Textiles,Clothing,Bed spreads,Bedding,Comforters and so on.
Our Advantages

Company Profile

Dongguan Hysen Machinery Co.,Ltd. specializes in manufacturing quilting machines, the company has standardized production plants,advanced production equipment,and a group of senior engineers and professional technical developers,forming a complete scientific research,design,production,sales and service system.We have more than 20+ years of production experience, we supply series of product and professional service to numbers of known companies.At present, the main products are quilting machine,automatic four-side hemming machine ,computerized panel cutting machine and tape edge machine , etc.Various products have passed the National Patent Office and CE certification.The products have been sold abroad to Asia, E-urope, America and Africa , etc.We hope we can build the good relationship with the customers all over the world.With cost-effective products and thoughtful warm service to exchange for trust and support, mutual benefit, create a win-win situation!
