Universal Milling Machine Xq6432

Product Description

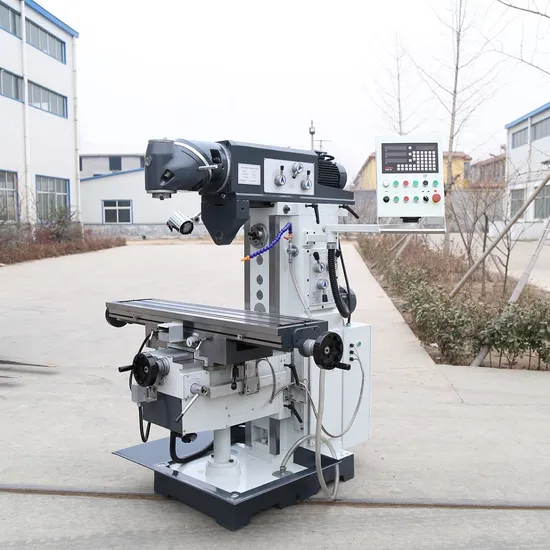

Universal Milling Machine XQ6432
Product Description
√ 360° rotary mill head, wide processing angle
√ extra horizontal spindle, for quick flexible change between vertical & horizontal mode
√ spindles are driven by gearbox directly, ensures powerful milling
√ X/Y/Z-axis feedings are driven by servo motor, good accuracy & low noise
√ machine is easy to operate (as shown in figure: A knob select manual / automatic feeding mode, B lever select X/Y/Z feeding, C lever select +/- feeding direction)
√ brief design control panel, easy to operate
√ reasonable circult routing in electrical cabinet, easy for maintenance
√ water cooling system, lubrication system are included
Product Parameters

Items	XQ6432	XQ6432A	XQ6432B	XQ6432C
Working area
Worktable size (L×W)	1270x320mm	1370x320mm	1270x320mm	1370x320mm
T slot (Width x No. x pitch)	14x3x80mm
Max. load of table	300kg
Table rotation	optional: ±45˚
Distance from horizontal spindle axis to table surface	65-465mm
Distance from vertical spindle nose to table surface	250-650mm
Travels
Worktable longitudinal travel (X)	720mm	820mm	900mm	1000mm
Worktable cross travel (Y)	300mm (If with DRO:280mm)		380mm (If with DRO:360mm)
Worktable vertical travel (Z)	400mm
Ram travel	460mm
Spindle
Horizontal spindle speed	12 steps; 35-1500rpm
Spindle taper(Horizontal)	7:24, ISO40
Motor power(Horizontal)	3kW
Universal milling head spindle speed	11 steps; 45-1660rpm
Spindle taper(Universal milling head)	7:24, ISO40
Universal milling head swivel angel	±360°
Motor power (Universal milling head)	3kW
Feed
Rapid feed (X/Y/Z)	1335/1335/1000mm/min
Feed range (X/Y)	30-830mm/min
Feed range (Z)	23-625mm/min
Others
Machine size (L×W×H)	1720x1680x1860mm	1820x1680x1860mm	1720x1680x1860mm	1820x1680x1860mm
Net weight	1850kg	1900kg	1900kg	1950kg

larger models

Items	XL6436	XL6436C	XL6436CL
Working area
Worktable size (L×W)	1325x360mm	1325x360mm	1600x360mm
T slot (Width x No. x pitch)	18x3x80mm
Max. load of table	350kg
±45°table rotation	optional
Distance from horizontal spindle center to worktable surface	0-450mm
Distance from spindle nose to table surface	175-625mm
Travels
Worktable longitudinal travel (X)	750mm	1100mm	1300mm
Worktable cross travel (Y)	320mm
Worktable vertical travel (Z)	450mm
Ram travel	550mm
Spindle
Horizontal spindle speed	12 steps; 60-1800rpm
Spindle taper(Horizontal)	7:24, ISO50
Motor power(Horizontal)	5.5kW
Universal milling head spindle speed	12 steps; 60-1750rpm
Spindle taper(Universal milling head)	7:24, ISO50
Universal milling head swivel angel	±360°
Motor power (Universal milling head)	4kW
Feed
Rapid feed (X/Y/Z)	1200/800/600mm/min
Feed range (X)	30-750mm/min
Feed range (Y)	20-500mm/min
Feed range (Z)	15-375mm/min
Servo motor torque	15Nm
Others
Machine size (L×W×H)	1800x2100x2000mm	2245x2100x2000mm		2520x2100x2000mm
Net weight	2685kg	2750kg		2800kg

Packaging & Shipping
Delivery time: generally 60 days production time after confirmation of order
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)
Delivery type: 20GP container is enough to load
Certifications
Products are strictly according to European standard, with CE, ISO9001 certificates.
Company Other Products
FAQ
1. What is the MOQ ?
Minimum order quantity is 1 set.
2. What is the payment term ?
Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos.
Other payment terms are also acceptable after discussion.
3. What is the trade terms ?
Usually is FOB.
Others like CIF, CFR, EXW...... are also acceptable.
4. How long is the guarantee ?
12 month after machine's delivery from factory.
Within warranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5. What kinds of machines do you supply?
Company specialized in producing CNC & manual milling machines. Include:
CNC gantry machining center
Vertical machining center
Simple NC milling machine
Conventional manual milling machines (Vertical, Horizontal, Universal, Turret mill, Swivel head mill, Power sliding ram type, Bed type, Tool milling machine, Gantry type etc.)
5. How can I believe your company ?
XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.
Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.
Welcome your inquiry and visiting.
