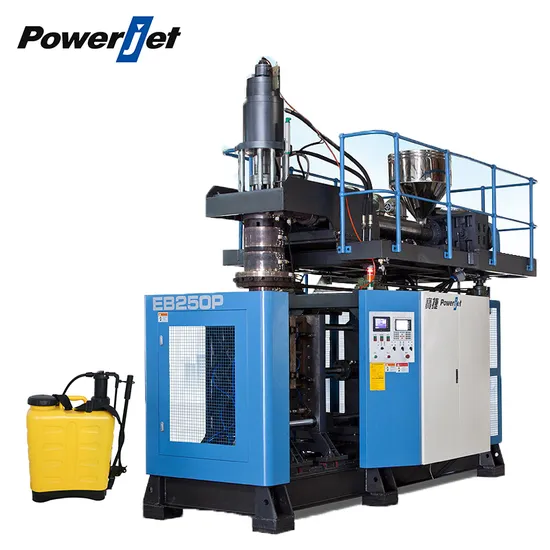

Extrusion Blow Molding Machine (EB250P/EB500P)

Product Description

Product Description
EB70U High-speed Double Station Extrusion Blow Molding Machine
Powerjet Single Station Extrusion Blow Molding Machine EB70U is specialized for manufacturing bottles and containers with Max 7L.Max Bottle Capacity - 7(L)Clamping Force - 85/110(KN)Extrusion Weight(HDPE) - 80~120(kg/hr)Applications - Wide Range Of Bottles For Daily necessities, toiletries, beverages, water tanks, laundry detergent/shower gel/motoroil bottles, etc
Detailed Photos
FEATURES:
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
2 Based on the Finite Element Analysis design, and platen, toggle, and platen frame are made in high-intensity nodular cast iron.
3:High-speed mold clamping oil cylinder with differential speed function, and high-speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with a high L/D ratio ensures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top quality requirement.
5:Multi-screw & multi-die heads can be adopted to improve the quality of the product and lower the cost of material.
6:Multiple-way PID-controlled temperature heating is precise and stable.
Product Parameters

MODEL	UNIT	EB250P	EB500P
Max.Product	L	30	30
Clamping Force	kN	200	400
Screw Diameter	mm	∅85	∅90	∅100
Screw L/D Ratio	L/D	24	25
Screw Rotary Speed	RPM	60	60
Extrusion Weight(HDPE)	kg	120	150	180
Extrusion Motor Power	kW	30	37	55
Pump Motor Power	kW	22	22
Heating Capacity	kW	35	40
Operation Pressure	Mpa	0.6~0.8	0.6~0.8
Air Consumption	m³/min	2.0	2.5
Cooling Water Consumption(25ºC)	L/min	120	150
Machine Dimension (LxWxH)	mm	4700x3500x3400	5300x3400x4250
Machine Weight	kg	9000	11000
