Ground Surveillance Radar Nsr60W That Can Detect Target up to 60m Fmcw Modulation Mode Wide Area Surveillence Radar

Product Description

About us
Hunan Nanoradar Science and Technology Co., Ltd is a subsidiary of Novasky, which is established in 2012 which is specialized in developing, producing and selling millimeter wave radar for security, UAV, Automotive, Smart Traffic and other industrial application, our radar sensor is covering 24GHz, 77GHz and 79GHz, we are successfully developed 10+ models MMV radar products which is mainly based on the MIMO system ray and cognitive radar technology.Nanoradar's radar sensor detect range is 30-450meters, the accuracy is up to 85% for security radar to identify human, our product is hot-selling in the United of American, Korea, The united of Kingdom, France etc. Nanoradar is a major MMV radar manufacture in China.

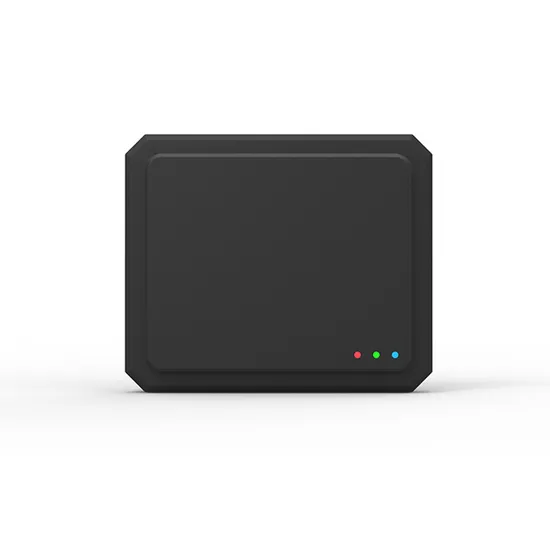

Product Description Nanoradar NSR60W is an intelligent wide area security radar that can detect target up to 60m. The radar detects and warns when the target enters the defense zone and support integration with video analysis technology. It adopts FMCW modulation mode, which has high detection accuracy; adopts unique digital beam synthesis (DBF) technology, which can greatly improve the anti-jamming capability of the radar system. With high-precision angle resolution capability, low-speed detection capability, through the back end signal processing and pattern recognition algorithms, the radar can distinguish between human and vehicle targets, and effectively filter out insects, birds and other animal interference. Products can be widely used in prisons, barracks, squares, airports, ports, oil fields, oil depots and other important perimeter security areas.
Product Features Intelligent, Active Detection, 3D Protection
Intelligent: intelligent algorithms and active learning ability make the system can be adapted to different environment and target identification; the system also support integration with various customized platforms. 3D Protection: the system adopts fusion technology of video and radar to create a three-dimensional protection system that can identify various moving targets of 1m² within 60m. Active Detection: Electromagnetic beams are actively launched and the target echoes are detected at the speed of 10 times per second to obtain the target's position, distance, and other information. At the same time, visual tracking is performed in real time to locate the invasion target and alarm. Multi-target Detection : Supports detection and tracking of 16 targets at the same time and ≤10 target data synchronization outputs. High Efficiency&Reliability High Efficiency: Working in 60 GHz-ISM-Band for moving target detection, featured with low-power consumption FMCW modulation technology, the system performs well even in harsh environments such as rain and snow,etc. High Reliability: the radar is able to detect&identify human targets in posture such as slow crawling, fast running,squat-walking,etc. Adopting advanced same-frequency asynchronous signal filtering technology, even if adjacent equipment or nearby 24GHz traffic speed radar has co-channel interference, it will not affect the normal operation of the radar. Good compatibility: 10/100M adaptable Ethernet interface(TCP/UDP),and fiber optic interface support easy integration with mainstream security platforms.
All Day&All Weather Protection All-weather: 7×24h real-time protection in all weather, adaptable to bad weather such as rain, snow, fog, haze, sand and dust, which minimize false and eliminate false alarms at most. MTBF: Adopts military-level equipment and components. MTBF is above 50000h Protection Grade: Radar IP67, high waterproof, dust proof, shock resistance performance High accuracy: With advanced digital signal processing techniques including 2FFT, DBF, TBD, JIPDA, PF and target cluster tracking, the radar is able to detect target with minimum speed of 0.05m/s, quickly position the target in any posture within the system coverage.User-friendly Design System Software: Easy operation, support GPS map import, customized protection zone settings, real-time viewing, recording and playback. Open architecture: can be flexibly expanded to multi-level networkingProduct Parameters

Model	NSR60W
Radar characteristics
Radar sensor	FMCW
Radar output data	Distance, direction,angle
Transmit frequency	61.2~61.5GHz
Refresh rate	10Hz
EIRP	22dBm
Power consumption	2.5W
Detection Performance
Target Identification	Small animals, people, vehicles
Recognition pattern	Radar triggers an alarm, linkage video review
Detection range(pedestrian)	60m(RCS 1.0m²)
Detection range(vehicle)	60m(RCS 30.0m²)
Detection accuracy	±0.36m
Detection resolution	0.72m
Speed Range	-8.9m/s~8.9m/s
Speed Accuracy	-0.032m/s~0.032m/s
Speed resolution	-0.064m/s~0.064m/s
Angle accuracy	±0.2°
FOV	Azimuth:120° ; Elevation:21°
Interface Characteristics
Communication Interface	1 RJ45 10M/100M(PoE)/RS232/RS485/Wi-Fi
Alarm Interface	2 lane(0.5A/125AC)\2 lane(Optocoupler isolation 2500VAC)
Network Interface	HTTP, DNS, NTP, TCP, UDP, DHCP, ARP, SSH
Physical Characteristics
Power supply	12~32V DC
Working temperature	-40~75ºC
Storage temperature	-40~85ºC
Dimension	150×125×45mm
Protection Grade	IP67

Solution 1:
We are providing you complete system, including radar, camera and management software.
Solution 2:
We are providing you only the radar sensor/module, and radar protocol/ API for your 2nd development. Detailed Photos Popular ApplicationPerimeter radar application: for fense protection, livestock protection, residential perimeter, critical facility perimeter protection etc.Certifications
