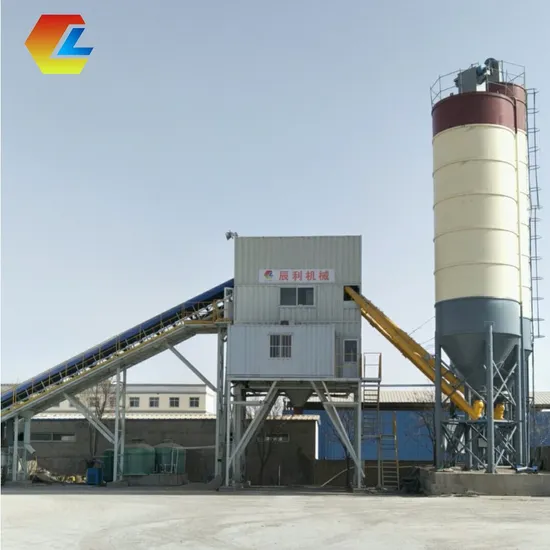

Concrete Mixing Plant 120m3/Hr Portable Concrete Mixing Plant

Product Description

Product Description

Model		HZS60	HZS90	HZS120	HZS180	HZS240	HZS270
Productivity		60	90	120	180	240	270
Mixer	Model	JS1000	JS1500	JS2000	JS3000	JS4000	JS4500
	Power	2*18	2*30	2*37	2*55	2*75	2*75
	Discharge capacity	1000	1500	2000	3000	4000	4500
	Aggregate maximum size	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80
Batching chamber		3*12	3*12	4*20	4*20	4*25	4*25
Weighing range and accuracy	Aggregate	3*(1000±2%)%	3*(1500±2%)%	3*(2000±2%)%	3*(3000±2%)%	3*(4000±2%)%	3*(4500±2%)%
	Cement	500±1%	800±1%	1000±1%	1500±1%	2000±1%	2500±1%
	Coal ash	150±1%	200±1%	400±1%	600±1%	800±1%	900±1%
	Water	150±1%	200±1%	400±1%	600±1%	800±1%	900±1%
	Additive	20±1%	30±1%	40±1%	60±1%	80±1%	90±1%
Discharge height		4.2	4.2	4.2	4.2	4.2	4.2
Overall power		100	150	200	250	300	300

Concrete batching plant is a building material manufacturing equipment consisting of five major systems: mixing host, material weighing system, material conveying system, material storage system, control system and other ancillary facilities. The main working principle of the concrete batching station is to use cement as the cementing material to mix sand, gravel, lime, cinder and other raw materials together, and finally make into concrete, which is used in construction and production as a wall material. Generally speaking, concrete batching plants are divided into two categories: stationary concrete batching plants and mobile concrete batching plants.
Company Profile
Tai'an Chenli Construction Machinery Co., Ltd. is a pioneering technology-based enterprise specializing in the innovation, design, manufacturing, engineering, and service of intelligent, complete equipment solutions for the building materials industry.
With a profound understanding of intelligent building equipment, Taian Chenli is resolute in delivering products that are practical, efficient, low-carbon, environmentally friendly, and intelligent. Guided by the philosophy of 'excellence in quality, simplicity to the extreme,' we are dedicated to advancing high-tech developments and applications in intelligent equipment, energy-saving solutions, and environmentally-friendly machinery for new building materials. Our leading products include cement concrete batching plants, mortar production lines, tower-type sand making machines, and eco-friendly batching plant equipment. These products are esteemed for their superior standards and reliability, earning deep trust and confidence from our users.
