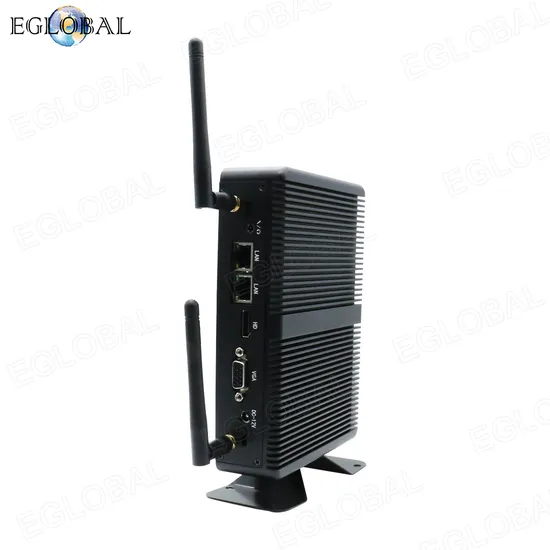

Intel Core I5 Mini Desktop with 8GB DDR3 and 512g SSD Win10 PRO Small Box Computer

Product Description

Product Description
Model: M3-2955UC CPU: Onboard Intel Haswell 22nm CPU Intel Celeron 2955U 1.4GHz Dual Core Two Threads 2MB Cache TDP 15W Intel HD Graphics
Model: M3-4200UC CPU: Onboard Intel Haswell 22nm CPU Intel Core i5-4200U 2.6GHz Dual Core Four Threads 3MB Cache TDP 15W Intel HD Graphics 4400 Product Highlight: - Support HDMI 1.4 and VGA dual display output synchronously. - Full Aluminum Alloy Silver/Black/Blue color shell, Exquisite production cration outside design with high quality and stable performance, slim dimension 173*127*39MM. - Fanless system without cooling fan, no any noise, work as long as 24 hours. - Low consumption TDP only 15W, save much energy and eco-friendly. - Can stand up by free bracket or can be mounted back of monitor or wall.

Basic Information
CPU	Onboard Intel 2955U/i3-4005Y /i3-4005U /i3-5005U/i5-4200U /i5-4200Y/J4105/M3-J4125
TDP	15W
Motherboard Size	120 x 120 mm customized size
BIOS	AMI BIOS, ACPI supported
Chipset	Intel Haswell
Memory Specifications
Memory Types	1 x SO-DIMM DDR3L Slot Support 4GB/8GB
Memory Channels	Single Channels
OS	Windows 7/Windows 8/Windows 10/Linux
PXE	YES
Audio	ALC662 sound chip, 6-channel Intel Panther Point HDA
Network	Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN
Processor Graphics	Intel HD Graphics / Intel HD Graphics 4400
Wi-Fi:
Module	1 x mini PCIE-half port for Wi-Fi module
Antenna	2 x inner RF cables and 2 x external antennas
Input/output port
Switch	1 x Power On/Off Switch
Power	1 x 12V DC In
USB	4 x USB3.0
Display	1 x VGA, 1 x HDMI 1.4
LAN	2x RJ45 Giga LAN
Audio	1 x MIC, 1 x SPK
COM	2 x RS232 COM
Storage
MSATA	1 x M-SATA3.0 slot for MSATA SSD
SATA	1 x SATA3.0 slot for SATA HDD or SSD
Product Dimension & Details:
Case Material	Black/Sliver/Blue color aluminum alloy(any customized color for bulk order)
Dimension	PC size 173*127*39mm
	Package size 320*220*85mm
Weight	Net 0.8kg, Gross 1.2kg
Functions	Calls on function automatically, Wake-On-LAN,
Cooling Mode	Fanless
Package Content
Standard	1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xBracket
Optional	Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xVESA mount
Power and Working Environment
Input	100-240V AC/50-60Hz
Output	DC+12V~+19V, recommend 12V/5A
Operating Temperature	0/+70 Centigrade
Storage Temperature	-20/+85 Centigrade
Relative Humidity	0%~90% (non-condensing)

Detailed Photos
Installation Instructions
Packaging & Shipping
Company Profile
About Shipping
We send to the Buyer's address specified on your order information. Please check your address/city/ postcode, making sure it's matched with your shipping address. We can't control the delivery time because it is processed by a third-party service. If the parcel has not arrived within the expected time, please contact us, we will extend the delivery date before opening the dispute. Normally we ship for free by faster delivery mode such as DHL, EMS, FedEx, our express agent special line, etc. It depends on different countries and different cases. But for those remote areas, we have to ship for free by registered postal mail, it will be slower than EMS, DHL, FedEx, etc. You can also add extra fees for DHL, EMS, FedEx, etc. faster shipment ways, thanks for understanding. All goods will be packed well to make sure they arrive in high condition. About Tax Normally we declare items as "MINI PC CASE" or "TV BOX" with value $20-$100, the Buyers are fully responsible for paying fees involving such as dispatching fees, storage costs, brokerage, taxes or VAT, etc. If you have a special requirement of the value, please leave a message to us when you place the order. The Buyer refuses to receive the goods due to the CUSTOMS TAX, the Buyer needs to be fully responsible for the freight back and forth. Thank you for your cooperation. About Warranty & Return Policy
We provide the 3-year product warranty, service is completely reliable and professional technical team. Class product quality, regardless of the current line, the product line marketed under the failure rate is very low, less than one percent failure rates. In case you encounter repair, you can contact us, send the product back to the company or our physical store. 3 years later, we still provide service for all users, and fees charged parts, maintenance free for life.
EGLOBAL committed to the sale of goods in line with the requirements of the case to return from the date of sale (the actual receipt date) 10 days can return, exchange within 30 days.

Return Category	Detailed Description	Support 10 days (inclusive) Return	Support 10 days (inclusive) Replacement	About Shipping Charges	Remark
Quality problem	Issue valid detection proof	YES	YES	EGLOBAL	Provide an effective inspection certification
Damaged goods, less pieces	Exist the appearance of deformation, damage, fewer pieces(include fewer pieces missing main parts or accessories)	YES	YES	EGLOBAL	Provide third-party logistic valid documents(Proving the existance of trade that is damaged, or few pieces when receipt of goods)
Don't match the color, size or type of goods	Receipt of goods and orders for goods color, size, model, etc. inconsistencies	YES	YES	EGLOBAL	Compare image physical with received merchandise
Consumers subjective reasons	Return for personal reasons( not like, don't want it)	YES	YES	Buyer	Not affect the secondary sales

FAQ Q: What Operating System is Mini PC I buy here?
A: Free Operating System: Default installed our trial activated OEM windows 10 pro English for free, other languages can be selected among: Russian, Spanish, Portuguese, French, German, Arabic, Italian, Japanese, Turkish, Greek etc. Please inform us which language you want to install. Other systems we can install for free like Linux, Ubuntu etc if you need. The Seller is NOT responsible and makes no compensation for trial OEM operating system.
Q: What brand of Ram, SSD and HDD I buy here?
A: Accessories as Ram, SSD, HDD, we use famous brand: Sam-sung, Mi-cron, San-Disk, To-shiba, Hy-nix, Cru-cial, Li-teon, King-fast, King-spec, Phi-sonetc, which brand we use depends on our test and our stock. Welcome to leave messages or negotiate with our Sales about the brand you need before shipment.
Q: Can I get some samples?
A: We are honored to offer you samples for quality check, MOQ is 1 set, welcome to order via the link directly. We also provide free OEM service for your sample order, just feel free to contact our Sales here.
Q: How does your factory do related quality control?
A: Quality is top priority. We attach great importance to quality control from the very begining of manufacturing and 3 Years Warranty.
Q: How to solve the product problem?
A: Welcome to contact our Sales about any problems, they will provide nice service to each customer directly.
Q: Could you please offer us good price?
A: Sure, we will satisfy your needs according to your order quantity. Welcome to send an inquiry here or contact our Sales about your bulk order. And we will provide more OEM/ODM service as per your requests.
