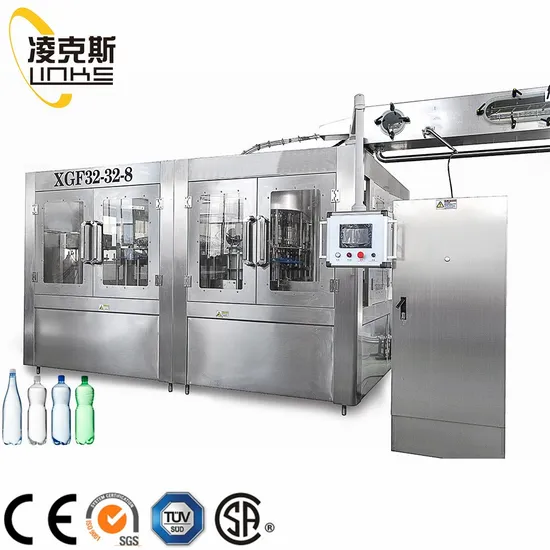

Automatic Complete a to Z Water Rinsing Filling Capping Machine Production Line

Product Description

Automatic Bottled Water Production Line For Pure Water or Mineral Water*We supply complete solution for the water filling plant ,including Water treatment system / Washing filling capping machine /Code sprayer / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system

Technical parameter : water filling machine
Model	XGF8-8-3	XGF14-12-4	XGF18-18-6	XGF24-24-6	XGF32-32-8	XGF40-40-10
Capacity(for 500ml)	2000	3000-4000	6000-8000	8000-12000	13000-15000	16000-18000
Suitable bottle shapes	PET circular or square
Bottle diameter(mm)	Dia50-Dia115mm
Bottle height (mm)	160-320mm
Compressor air	0.3-0.7Mpa
Washing meidium	Aseptic water
Rinsing pressure	>0.06Mpa
Application	Water filling machine
Total power (KW)	4.4kw	4.4kw	4.4kw	5.2kw	6.2kw	7.8kw
Overall dimensions	2.3*1.9m	2.5*1.9m	2.8*2.15m	3.1*2.5m	3.8*2.8m	4.5*3.3m
Height	2.3m	2.5m	2.5m	2.5m	2.5m	2.6m
Weight(kg)	2500kg	3200kg	4000kg	4500kg	6500kg	8000kg

Different filling capacities8-8-3 Bottle Water Filling Line Capacity:1000-2000 bottles per hour.
14-12-5 Bottle Water Filling Line Capacity:2000-3000 bottles per hour.
16-12-6 Bottle Water Filling Line Capacity:4000-6000 bottles per hour.
18-18-6 Bottle Water Filling Line Capacity:6000-8000 bottles per hour.
24-24-8 Bottle Water Filling Line Capacity:10000-12000 bottles per hour.
32-32-10 Bottle Water Filling Line Capacity:12000-15000 bottles per hour.
40-40-12 Bottle Water Filling Line Capacity:20000-24000 bottles per hourDetails Images
-------------------------------------According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment plants.Main Features
*Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
*Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
*The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution. *High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid loss.
*Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
*Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Name	Brand	Area
PLC	Siemens	Germany
Inverter	Siemens	Germany
Contactor	Siemens	Germany
Touch screen	Siemens	Germany
Motor	ABB	Swiss
Pneumatic parts	FESTO	Germany
Electrical parts	Schneider	France

As customer request and market demand, we provide the better solution for the final product package,We have various kinds of options. Labeling machine have the PVC sleeve label, BOPP hot glue label, Adhesive stick label, Wet glue label ,and packing machine have the film shrink machine and carton box package.We design the factory layout based on customer factory sizes,whole line design is based on famous brand motors and automatic lubricant system ,and with less power consumption ,and save space .This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in food, beverages, cosmetics, pharmaceutical industry.Turnkey SolutionLeadership in quality and technology from raw material to bottled liquid to selling products - Links Co.,Ltd, A-Z turnkey plant supplier, is known for developing innovative high-end products and new technologies.FAQ:Q: Can your company provide turnkey project from A to Z?
A: Yes, we can provide the turnkey project for beverage production line, from PET preform and cap making machine, PET bottle blowing machine, water treatment plant, juice or carbonated drink mixing plant, filling and packing machines.
Q: How can I know the quality of your machines before I order?
A: We have many projects in different countries, with the customers' permission, we can guide you to visit the factories and see the machines running. You are also very welcome to visit our company in China to see the machine running in our factory.
Q: How can we check our machines if we order the machines from you?
A: We will test all the machines before shipment, you can come to inspect the machines or we can take videos for you.
Q: What is the guarantee or warranty of your machines?
A: We give 18 months warranty for the mechanical parts and 12 months warranty for the electric parts.
Q: For a new starter, how can you help me start and run a water or beverage bottling plant?
A: We can help you do the bottle design, label design and choose the suitable labeling and package type according to your local market. If you have confirm the factory size, we can also make the machine layout design accordingly. We can help you install the machines, train your staff how to operate, maintain the machines and even help you hire experienced Chinese engineer to work in your factory as a production manager.
