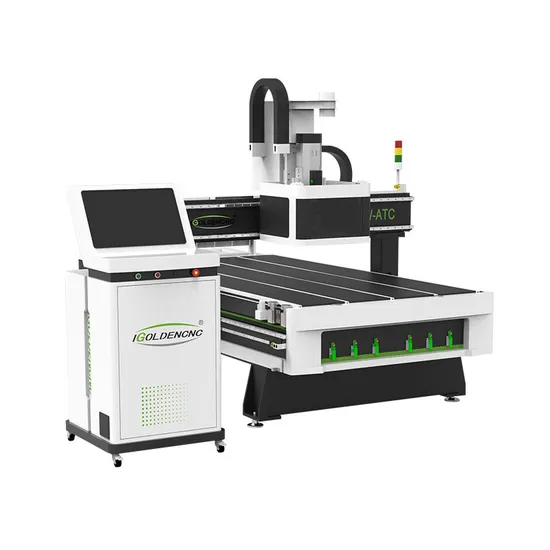

3D CNC Router Woodworking Machine 6 Heads 3 Axis Wood CNC Router
| US$6,000.00-10,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
1325
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
Key Words
Atc CNC Router
Product Name
1325 Wood Atc CNC Router
Applications
Wood,MDF,Acrylic,PVC,Metal
Reducer
Shimpo
Frequency Converter
Taiwan Delta
Transport Package
Standard Exporting Wooden Cases
Specification
1300*2500mm
Trademark
IGOLDEN CNC
Origin
China
HS Code
84659900
Production Capacity
200 Sets/Month
Product Description
| Model | iGW-ATC-1325 |
| Working area | 1300*2500*250mm |
| Spindle | HQD 9.0kw Air Cooling Spindle |
| Max. Running Speed | 50000mm/min |
| Max. Working Speed | 30000mm/min |
| Repositioning Accuracy | 0.02mm |
| Machine Body | T-type Welding Structure |
| Gantry | Steel Structure |
| Worktable | Vacuum Suction with T-slot Table |
| Guide Rails | Taiwan HIWIN |
| Ball Screw | Taiwan TBI |
| Driver | Servo Drive and Servo Motor |
| Reducer | Japan SHIMPO |
| Frequency Converter | Taiwan Fuling |
| Control System | Taiwan LNC |
| Working Voltage | 380V/50Hz |
