1bts Series Hing Offset Disc Harrow/12-24 PCS Disc Harrow for 30-110 HP Tractor

Product Description

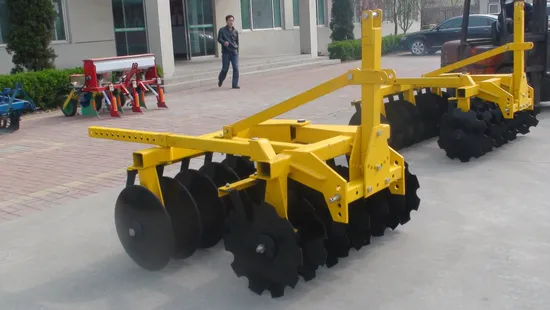

1BTS hinge offset disc harrow\disk harrow for 50-110hp tracotr
This kind of hinged offset disc harrow is specially designed, manufactured and borrowed according the features of foreign disc plough, it is mounted or trailed with tractor in you different need. This hinged disc harrow can be used as tillage machine instead of plow on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil, the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.
It is an amphibious disc harrow for 30-120hp 4-wheels tractor.
The disc blade can be flat or notched for your need.
The working depth can be adjusted freely.
65Mn spring steel disc blade, HRC: 38-44.

Model	Unit	1BTS-6-6	1BTS-7-7	1BTS-8-8	1BTS-9-9	1BTS-10-10	1BTS-11-11	1BTS-12-12
Working width	mm	1400	1600	1800	2000	2300	2500	2700
Working depth	mm	140
Q'ty of disc		12	14	16	18	20	22	24
Total weight	kg	440	490	550	590	620	650	720
Matched power	hp	30	40	50-60	60-70	70-80	80-100	90-110
Linkage		three point suspension I type/ trailed	Three-point suspension II type /Trailed

RFQ:
Q:Are you trading company or manufacturer ?
A:We are factory.
Q:How long is your delivery time?
A:Generally it is 1-3 days if the goods are in stock.Or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q:Do you provide samples ?Is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:What is your terms of payment ?
A:Payment<=3000USD, 100% in advance.Payment>=3000USD, 30% T/T in advance
,balance before shippment.
