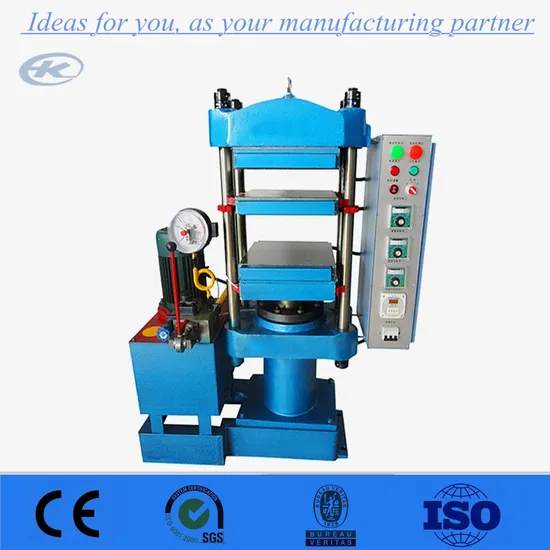

Frame Rubber Mat Plate Hydraulic Vulcanizing Heat Press Machine

Product Description

Product Description
Rubber Vulcanizing Heat Press (XLB) machine 1.Material of steel plate:
We use hight quality carbon steel Q-235,after shot blasting ,smooth, it is strong enough than common steel.
2.Weldment of frame : world technique
Welded together as a whole part,Stewing fire treatment after weldment.
(Carbon dioxide gas shielded welding,alloyed welding wire).
submerged arc welding, VSR treatment after weldment.
3.Piston:
the material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.
4.Heating way&precision temperature control:
Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity)
range of temperature:0-300 °C (can be adjustment if you need 400 °C ,we can do it )
Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C
Also we can produce the machine with water cooling system.
5.Hydraulic system: (PLC control)
the professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure.
We use OMRON,SIMENS CHNT ect brand electric parts.
6.There are more advanced technical information as our core patents,and not showed in the description,please send email to us.
technical parameter:

Parameters/version	XLB350*350*2	XLB400*400*2	XLB500*500*2	XLB600*600*2/4	XLB750*850*2	XLB1000*1000*2
Mould closing force	0.25	0.5	0.8	1.0	1.6	2.5
Hot plate spacing	125	125	125	125	125	200
Hot plate layer	2	2	2	2/4	2	2
Plunger stroke	250	250	250	250/500	250	400
Heating way	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/Stream	Electricity/stream
Main motor power	2.2	2.2	2.2	2.2	3	5.5
The thermal power	2.4kw/board	3kw/board	3kw/board	7.5kw/board	9kw/board	10.8kw/board
Size(l*w*h)	1450*400*1350	1600*400*1440	1450*690*1818	1880*780*1660	2100*1010*1900	2400*960*2500
Weight(kg)	1200	1500	1700	2500/3100	3560/4300	8300

Related Products
Packing& Delivery
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized. Our Services :

1. We will design, manufacture, install and test the machines according to customers' requirement. Relevant personnel training for customers, ensure that customers fully grasp the use and maintenance of technology.
2. Our service department listen to customers' feedback at any time and provide spare parts timely.
