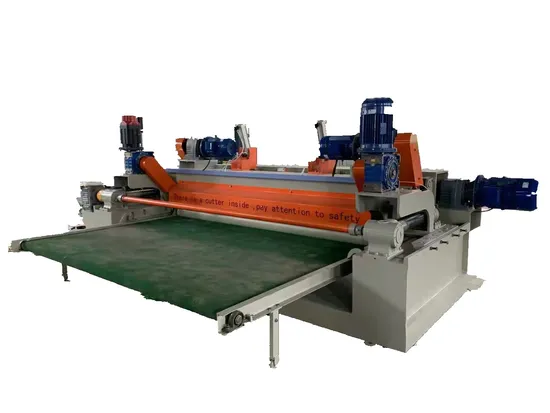

4FT Core Veneer Rotary Spindle Less Peeling Lathe with 110m/Min Peeling Speed

Product Description

Main Machine Features
1. All new design, specially for hard wood logs.
2. High peeling speed, max 90m/min.
3. It helps reduce production cost, save 40~60% power.
4. Double veneer suface smooth, thickness tolerance<0.05mm.
5. Double motors drive rollers, peeling speed is more stable.
6. Bigger power inverter, PLC control system in English.
7. Clipper inbuit design, cost-saving.
8. Automatic electrical lubrication system for important mechanical parts.
9. Automatic hydraulic dropper for left log.
10. R87 harden helical gear speed reducer. Japanese NSK bearings.
11. Automatic final piece veneer holder device.
12.Full closure oil immersed screws, wear-resisting, maintenance -free.
13.Exclusive manufacturer adopt the full closure oil immersed guide bar(quenching process treatment), all working life free maintenance, promise the machines feeding at most stable Condition, so that can get the best quality veneer.
Technical Specifications

Max. working length	1400mm
Working diameter range	22~500mm
Max. woring speed	90m/min
Veneer thickness	0.5~7mm
Double rollers motor power	7.5kw x 2sets
Single roller motor power	5.5kw x 2sets
Screw Feeding motor power	7.5kw
Rotary clipper motor power	1.5kw
Rubber belt conveyor motor	1.5kw
Machine size	4900x1900x1550mm
Machine weight	7000kgs

Packing and Shipping
1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.
Our Services
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.
