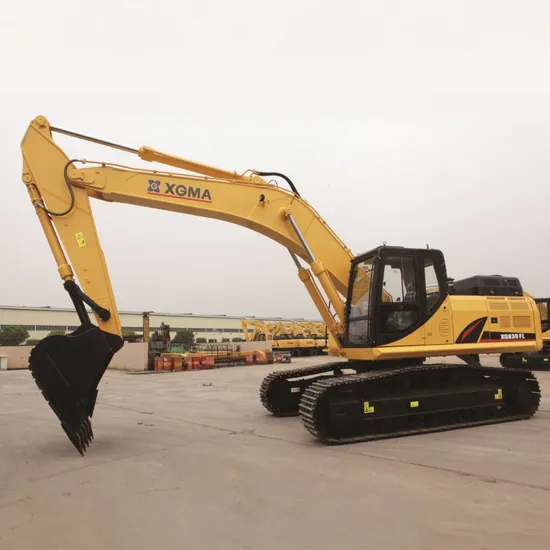

Xgma Rops AC Cabin 36t Hydraulic Crawler Excavator Xg836FL with Rock Arm

Product Description

Product Parameters

Model	XG836FL/XG836EL
	unit (of measure)
Working mass	T	36.5
Bucket capacity(SAE)	m3	1.6-1.8
Engine model		CUMMINS 6CTAA8.3-C260
Power	kw/r/min	194/2000
Volume of fuel tank	L	650
Travel speed (High/Low)	km/h	6.2/4
Swing speed	r/min	8.2
Gradeability	°	35
Digging force of bucket	KN	245
Digging force of stick	KN	185
Specific pressure of ground contact	Kpa	70.8
Traction		247.8
Maximum flow	L/min	270*2+30
Working pressure	Mpa	34.3
Volume of hydraulic fluid tank	L	310
Overall length	mm	11184
Overall width(mm)	mm	3190
Overall height(tope of boom)	mm	3180
Overall height(tope of cab)	mm	3165
Gap from counterweight to ground	mm	1190
Min ground clearance	mm	498
Tail swing radius	mm	3525
Length of track on ground	mm	4030
Track length	mm	4945
Gauge	mm	2590
Width of track	mm	3190
Width of track shoe	mm	600
Width of turning table	mm	2995
Max. digging height	mm	10200
Max. dumping height	mm	7135
Max. digging depth	mm	7370
Max. digging distance	mm	11100
Max. digging distance at plane	mm	10910
Min. swing radius	mm	4265
Max height at min swing radius	mm	8500
Distance from center of swing to rear end	mm	3525
Thickness of track grouses	mm	30
Height of counterweight	mm	2627
Ground Contact length (in transportation)	mm	5875
Length of stick	mm	3185
Length of boom	mm	6470

Detailed Photos
Company Profile
Partners&Cases
Packaging & Shipping
To serve customers in different regions, we have a variety of sound and safe logistics solutions to ensure that every order can be safely and efficiently delivered to the destination.
After Sales Service
We have the professional after service team guarantee customers get the full service for spare parts, technology and maintenance, all the hardworking in order to customers get the continuous and better development.
FAQ
Q1: What are the delivery times for vehicle exportation?
A1: If the vehicle is in stock, we will deliver the vehicle within 5-10 days. If not, we will produce the vehicle, arrange the shipping, and complete delivery within 25-35 days. For other special vehicles, it might take more time to refurbish them according to your requirements.
Q2: What are the modes of transportation?
A2: Normally, Russia and Central Asia are suitable for truck and train transportation, and other regions such as the Middle East, Africa, and South America are suitable for sea transportation.
Q3: What are the delivery terms?
A3: EXW, FOB, CIP, CIF.
Q4: What are the payment terms?
A4: You firstly need to pay a 30% deposit after signing the trade contract with us, and then you need to pay the remaining 70% balance before the vehicle is shipped.
Q5: What are the payment terms and options?
A5: TT, L/C.
Q6: Do you provide after-sales support?
A6: Yes,we have a professional after-sales service team, who can provide technology support for you. Our team in China can purchase spare parts for you with competitive price and ship them to your location. (We ensure that every vehicle we send out is of excellent quality and will not require repairs under normal circumstances.)
