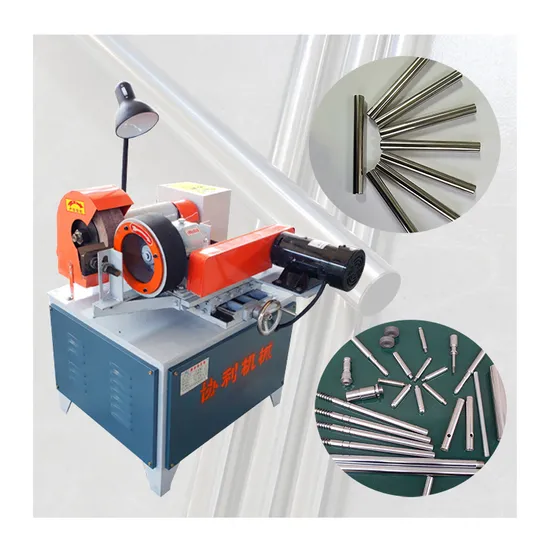

Xieli Machinery Automatic Round Tube Pipe Polishing Machine Ss Stainless Steel Tube Pipe Polisher Machine Polish Range 1-120mm
Basic Info.
Model NO.
WX-A1-60
Certification
CE
Condition
New
Voltage
380V
Application
Metal Tube
Brand
Xieli Machinery
Product Name
Round Tube Polishing Machine
Function
Round Pipe Square Pipe Polishing
Weight
320kg
Usage
Round Pipe Rust Removal
Material
Stainless Steel 304
Keyword
Metal Surface Rerusting
After-Sales Service Provided
Online Support
Transport Package
Non Fumigation Export Wooden Box
Specification
0.7*0.8*1.0m
Trademark
Xieli Machinery
Origin
China
HS Code
8460902000
Production Capacity
1000pieces/Year
Product Description
Product Parameters| Project / Model | WX-A1-60 | WX-A1-120 | WX-A2-60 | WX-B1-60 | WX-B1-120 |
| Input voltage (v) | 380v, 50hz, 3P | ||||
| Input power (kw) | 3.5 | 4.5 | 6 | 4.5 | 4.5 |
| Polishing wheel specification (mm) | 250*40*32 (width can be assembled) | ||||
| Guide wheel specification (mm) | 230*80 | 230*100 | 230*120 | ||
| Polishing wheel speed (r/min) | 3000 | ||||
| Guide wheel speed (r/min) | 0-120(stepless speed regulation) | ||||
| Machining diameter (mm) | 1-120 | 50-180 | 1-120 | 1-120 | 50-180 |
| Processing efficiency (m/min) | 0.8 | ||||
| Surface roughness (um) | Ra0.02 | ||||
| Wet water cycle dust removal | optional | have | optional | ||
| Dry fan dust remocal | optional | have | optional | ||
| Machine tool total weight approx (kg) | 320 | 460 | 860 | 520 | 620 |
| Equipment overall dimension (m) | 0.7*0.8*1.0 | 0.8*0.9*1.0 | 1.2*0.9*1.5 | 1.0*0.9*1.0 | 1.1*1.0*1.0 |
Main uses and scope of application
The round pipe polishing machine is mainly used for rust removal and polishing in industries such as
hardware manufacturing,vehicle accessories, hydraulic cylinders, steel and wood furniture, instrument
machinery, standard parts, and before and after electroplating.
The round tube polishing machine is the best choice for polishing round tubes, round rods, and slender shafts.
The round pipe polishing machine can be equipped with various polishing wheels, such as thousand blade wheels,
hemp wheels,nylon wheels, wool wheels, cloth wheels, PVA wheels, etc. The guide wheel has stepless speed control,
and the operation issimpleand convenient. The steel structure is optimized for more stable performance, and the
reserved fan port can be equipped with a dust removal fan.
