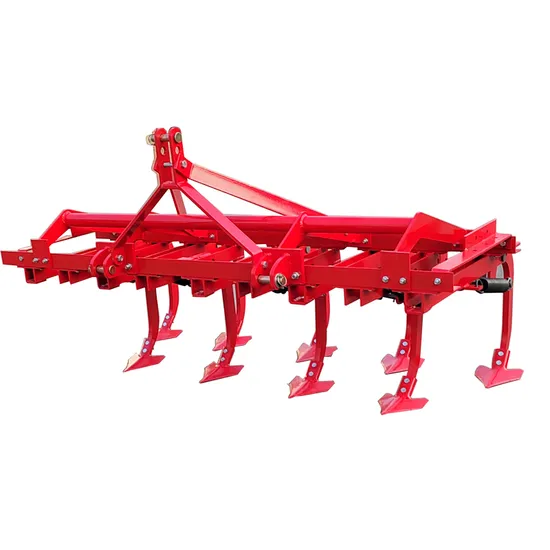

Farm Implements Land Cultivator 9 Tines 11tines Tractor Spring Tines Cultivator

Product Description

Product Introduction
Our spring cultivator adopts a double-spring tension device. Its feature is the tines bounce when meeting with obstacles during operation and return to normal working quickly after over them. In this way, tines are protected well. Secondly, it is easy to operate and control the depth. This machine is suitable for cotton, corn and beans.
Advantages:
This type of spring tooth cultivator has a shovel and tine for choice.
The shovel or the tine has already been heat treated, which is enough to endure the collision while engaging with the rocks, roots, and other obstructions.
It is a tractor-mounted spring cultivator for a 25-120 hp tractor.
Specification

No. of tine	working width	working depth	weight	matched power	linkage
5	1200mm	100-250mm	260kg	25hp	3-point mounted, class I
7	1400mm		320kg	30-50hp
9	1800mm		400kg	40-60hp	3-point mounted, class II
11	2200mm		490kg	60-70hp
13	2500mm		550kg	70-100hp
15	3000mm		640kg	80-120hp

What we can do for you?
Luoyang Ruide Tractor Co.,ltd has been in tractor production for over 20 years, and we know this industry very well. We can supply many different kinds of tractor implements. At present, we haven't shown all our products on this web, so if you need something about tractor implements, please feel free to let us know, we are planning to give you a competitive price. Besides, we know the importance of good quality, so we just supply reliable products to you.
