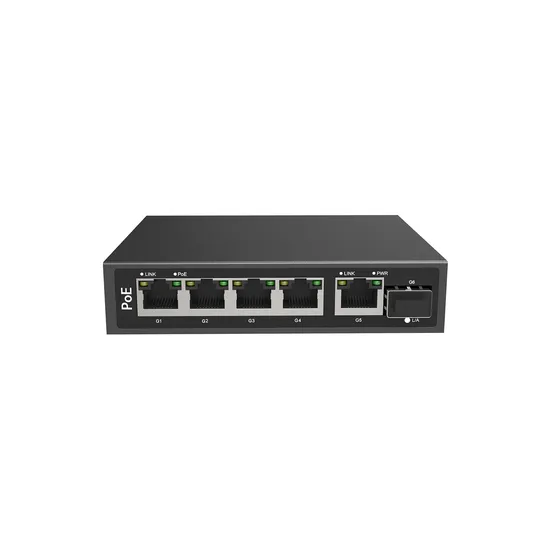

High Power 250W Total Power Supply Poe Network Switch with 4 Poe Ports RJ45 and SFP Fiber Ports
Basic Info.
Model NO.
POE4P90
Transmission Rate
10/100/1000Mbps
Ports
≦8
Max. Power Per Port
90W; IEEE802.3af/at
Total Power
250W
Switching Capacity
12gbps (Non-Blocking)
Power Supply
External Power Adapter, AC100~240V 50-60Hz
Net Weight
0.35kg
Transport Package
Gift Box/ Export Carton/ Pallet
Specification
118*95*28mm
Trademark
Ben & Fellows or OEM
Origin
China
Production Capacity
50000PCS Per Month
Product Description
High Power POE Network Switch with 4 POE ports Features 1. Four 10/100/1000M adaptive RJ45 ports support IEEE 802.3af/at standard PoE power supply. 2. Single port power supply up to 90W, total power supply up to 250W. 3. Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure. 4. Gigabit RJ45 ports and SFP fiber ports combination, high-speed high-bandwidth connection, to meet the networking needs of various scenarios.Specification
| Model | POE4P90 |
| Transmission Rate | 10/100/1000Mbps |
| Max. Power Per Port | 90W; IEEE802.3af/at |
| Total Power | 250W |
| Fixed Port | 1*1000M uplink SFP port(Data) 1*10/100/1000M RJ45 port (Data) 4*10/100/1000M bt PoE ports (Data /Power) |
| Ethernet Port | 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| Network Protocol | IEEE802.3 10BASE-T,IEEE802.3i 10Base-T,IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-X,IEEE802.3x |
| Switching Capacity | 12Gbps(Non-blocking) |
| Power Supply | External power adapter AC100~240V 50-60Hz |
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Dimension(L*W*H) | 118*95*28mm |
| Net Weight | 0.35kg |
