S5500V2-Ei Ethernet Network Switch High-Performance Converged Mainnet Switch

Product Description

Model: LS-5500V2-30F-EI Product Description
S5500V2-EI series switches are Layer 3 Gigabit Ethernet switches independently developed by H3C Technology Co., Ltd. (hereinafter referred to as H3C). Type Managed Switch. It is developed based on the industry's excellent high-performance hardware architecture and H3C's advanced Commware V7 software platform. Support IPv4/IPv6 hardware dual stack and wire-speed forwarding, enabling customers to cope with the coming IPv6 era calmly. H3C S5500V2-EI series Ethernet switches provide 10/100/1000Base-T adaptive Ethernet ports or 10GE SFP+ optical ports , and can support 10GE SFP+ ports and 40GE QSFP+ optical ports through daughter cards. In the enterprise network, it can be used as an access device to provide gigabit to desktop applications, or as the core of small and medium-sized enterprises; in the metropolitan area network or industrial users, it can provide gigabit access to end users or tandem low-end switches. Upwards can be aggregated to core switches through 10G or 40GE fibers or link aggregation. It supports rich and comprehensive management features, simplifies deployment and installation, and optimizes operation and maintenance management.
H3C S5500V2-EI series Ethernet switches currently include the following models:S5500V2-34S-EI: 28 10/100/1000TX Ethernet ports (including 4 Combo ports), 2 SFP Gigabit ports + 2 1/10G BASE-X SFP PLUS 10 Gigabit ports, 2 QSFP PLUS 40G ports;

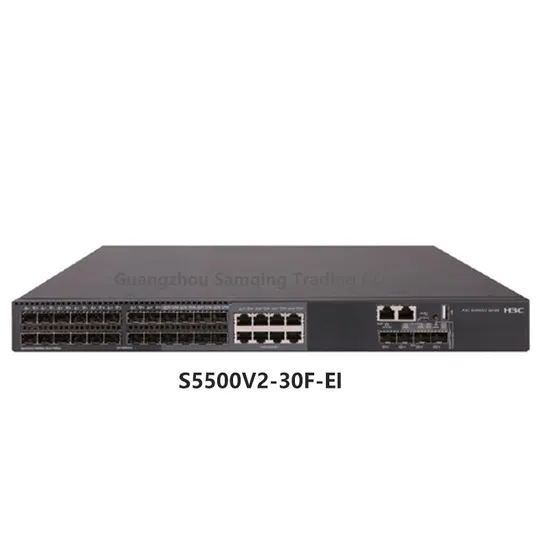

S5500V2-30F-EI: 24 SFP Gigabit ports, 8 Combo ports, 4 1/10G BASE-X SFP PLUS 10 Gigabit ports, and 1 expansion slot;
S5500V2-54S-EI: 48 10/100/1000TX Ethernet ports, 2 SFP Gigabit ports, 2*1/10G BASE-X SFP PLUS 10 Gigabit ports, 2 QSFP PLUS 40G ports;
S5500V2-28C-EI: 24 10/100/1000BASE-T ports (including 8 Combo ports), 4 1G/10GBASE-X SFP Plus ports, 1 Slot;
S5500V2-52C-EI: 48 10/100/1000BASE-T ports, 4 1G/10GBASE-X SFP Plus ports, 1 Slot; Detailed Photos Rich network interfaceH3C S5500V2-EI supports a wealth of network interfaces. All the mainframes are fixed with 10 Gigabit ports, providing a combination of relatively cost-effective ports, realizing a low-cost interconnection solution and meeting the user's 1:1 non-convergence network deployment requirements; Combination ports meet the needs of different scenarios and services, and have large-capacity 40G ports to achieve high-density, high-performance port expansion capabilities, meet the needs of large-scale network aggregation or core deployment of small and medium-sized networks, and configuration requirements for optical-electrical hybrid networking.
The H3C S5500V2-EI all-optical port switch supports expansion slots and supports rich and flexible port expansion boards, including 2-port 40G, 2-port 10G SFP Plus, 8-port 10G SFP Plus, and 4-port Gigabit copper ports +6 Port SFP (2*Combo), etc., realize high-density, high-performance port expansion capability, protect user investment, and reduce network expansion costs.
IRF2 (Second Generation Intelligent Resilience Architecture)H3C S5500V2-EI series switches support the IRF2 (Second Generation Intelligent Resilient Architecture) technology, which is to connect multiple physical devices to each other to make them virtual as a logical device, that is, users can regard these multiple devices as one Manage and use a single device. IRF can bring the following benefits to users:
After the simplified management IRF architecture is formed, you can connect to any port of any device to log in to a unified logical device, and manage the entire intelligent elastic system and all member devices in the system through the configuration of a single device. Physically connect to each member device to configure and manage them individually.
The various control protocols running in the logical device formed by the simplified service IRF are also run as a single device. For example, the routing protocol will be calculated as a single device. With the application of the cross-device link aggregation technology, it can replace the original generation tree protocol, which saves the interaction of a large number of protocol packets between devices, simplifies network operation, and shortens the convergence time when the network is turbulent.
Elastic expansion It can achieve elastic expansion according to user needs and ensure user investment. And new devices can be "hot-swapped" when they join or leave the IRF architecture, without affecting the normal operation of other devices.
The high reliability of high reliability IRF is reflected in three aspects: link, equipment and protocol. The physical ports between member devices support the aggregation function, and the physical connection between the IRF system and the upper and lower-layer devices also supports the aggregation function, which improves the reliability of the link through multi-link backup; the IRF system consists of multiple member devices. Once the master device fails, the system will quickly and automatically elect a new master to ensure uninterrupted services through the system, thus realizing device-level 1:N backup; the IRF system will have a real-time protocol hot backup function responsible for the configuration information of the protocol. Backup to all other member devices to achieve 1:N protocol reliability.
High Performance For high-end switches, the increase in performance and port density is limited by the hardware structure. The performance and port density of an IRF system is the sum of the performance and port numbers of all devices inside the IRF. Therefore, the IRF technology can easily expand the switching capability of the device and the density of user ports several times, thereby greatly improving the performance of the device.
Complete security control strategyH3C S5500V2-EI series switches support the EAD (terminal access control) function, and cooperate with the background system to integrate terminal security measures such as terminal antivirus and patch repair with network security measures such as network access control and access authority control into a linked security The system, through the inspection, isolation, repair, management and monitoring of network access terminals, makes the entire network change from passive defense to active defense, from single-point defense to comprehensive defense, and from decentralized management to centralized policy management. , worms and other emerging security threats overall defense capabilities.
H3C S5500V2-EI series switches support centralized MAC address authentication, 802.1x authentication, Portal authentication, support dynamic or static binding of user identification elements such as user account, IP, MAC, VLAN, and port, and implement user policies (VLAN, QoS, QoS, etc.) , ACL) dynamic distribution; support with H3C company's iMC system to conduct real-time management of online users, timely diagnosis and disintegration of illegal network behavior.
H3C S5500V2-EI series switches provide enhanced ACL control logic, support large-capacity ingress and egress port ACLs, and support VLAN-based ACL delivery, which simplifies the user configuration process and avoids waste of ACL resources. In addition, the S5500V2-EI series will also support the unicast reverse path finding technology (uRPF). The route between the source addresses formulated in the , that is, to verify its authenticity, and delete the data packet if it does not exist, so that we can effectively prevent the increasingly flooded source address spoofing in the network.
The H3C S5500-EI switch supports the port isolation function. Even within the same VLAN, the ports can be isolated to avoid broadcast storms and viruses from spreading in the VLAN and affecting all ports. Support MAC address learning restriction and secure MAC address function, which can ensure that only real service hosts can access the network, and other newly accessed hosts cannot obtain addresses and connect to the network even if they are connected to the switch. 7VM Shoreline Cyber Security Information Station
Multi-layered security protectionThe S5500V2-EI series switches have multiple reliability protections at the device level and link level.
The S5500V2-EI all-optical port switch supports pluggable AC, direct dual power modules, and pluggable dual fan reliability design. It can flexibly configure AC or DC power modules according to the needs of the actual environment. In addition, the whole machine also supports power supply and The fan fault detection and alarm can automatically adjust the fan speed according to the temperature change. These designs make the device more reliable.
In addition to device-level reliability, the product also supports a wealth of link-level reliability technologies, including LACP/STP/RSTP/MSTP/Smart Link/RRPP fast ring network protection mechanisms and other protection protocols, supports IRF2 intelligent elastic architecture, supports 1 : N redundant backup, support ring stacking, support cross-device link aggregation, greatly improve network reliability, when the network carries multiple services and large traffic, it does not affect the network convergence time, ensuring the normal development of services.
Rich QoS policiesH3C S5500V2-EI series switches support L2 (Layer 2) ~ L4 (Layer 4) packet filtering functions, providing source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, Traffic classification for VLANs. Provides a flexible queue scheduling algorithm, which can be set based on ports and queues at the same time, and supports three modes: SP (Strict Priority), WRR (Weighted Round Robin), and SP+WRR. Supports port mirroring in both outbound and inbound directions, which is used to monitor the packets on the specified port, and copy the data packets on the port to the monitoring port for network detection and troubleshooting.
Excellent management featuresH3C S5500V2-EI series switches support rich management interfaces, such as Console port, micro usb port, out-of-band network management port, support SNMPv1/v2/v3 (Simple Network Management Protocol), support general network management platforms such as Open View, and iMC intelligent management center. Support CLI command line, Web network management, TELNET, make device management more convenient, and support SSH2.0 and other encryption methods, making management more secure.
H3C S5500V2-EI series switches support SPAN/RSPAN mirroring and multiple mirroring observation ports, and can analyze network traffic to take corresponding management and maintenance measures, making the previously invisible network service application traffic clear at a glance, and can provide users with a variety of The network flow analysis report helps users optimize the network structure and adjust resource deployment in time.

Support Features	S5500V2-34S-EI	S5500V2-54S-EI	S5500V2-30F-EI	S5500V2-28C-EI	S5500V2-52C-EI
exchange capacity	598Gbps/5.98Tbps
packet forwarding rate	222Mpps
Dimensions (W×D×H) (unit: mm)	440×260×43.6	440×260×43.6	440×360×43.6	440×360×43.6	440×360×43.6
weight	<3.5kg	<3.7kg	≤3.9kg	<3.5kg	≤7kg
management network port	Console port
Manage serial ports	mini USB console, USB
Front Panel Service Port Description	28 10/100/1000TX Ethernet ports (including 4 Combo ports), 2 SFP Gigabit ports + 2 1/10G BASE-X SFP PLUS 10 Gigabit ports, 2 QSFP PLUS 40G ports;	48 10/100/1000TX Ethernet ports, 2 SFP Gigabit ports, 2*1/10G BASE-X SFP PLUS 10 Gigabit ports, 2 QSFP PLUS 40G ports;	24 SFP Gigabit ports, 8 Combo ports, 4 1/10G BASE-X SFP PLUS 10 Gigabit ports, 1 expansion slot;	24 10/100/1000BASE-T ports (including 8 Combo ports), 4 1G/10GBASE-X SFP Plus ports, 1 Slot;	48 10/100/1000BASE-T ports, 4 1G/10GBASE-X SFP Plus ports, 1 slot;
Expansion slot	NO	NO	1	1
Expansion board	Not scalable		LSWM2QP2P (2 ports 40G) LSWM2SP2PM (2-port 10G SFP Plus with MACSec interface board) LSWM2XGT2PM (2-port 10G BASE-T with MACSec interface module) LSWM2SP8P (8-port 10 Gigabit SFP Plus interface board) LSWM4SP8PM (8-port 10 Gigabit SFP Plus with MACSec interface module) LSPM4G4T6P (4-port Gigabit copper port + 6-port SFP (2*Combo) interface module) LSPM6FWD8 (Next-generation firewall module for S5500V2-28C-EI)
port aggregation	Support GE port aggregation Support 10GE port aggregation Support 40G aggregation Support static aggregation Support dynamic aggregation Support cross-device aggregation Support 8-port link aggregation
Port Characteristics	Support IEEE802.3x flow control (full duplex) Support multicast storm suppression Support broadcast storm suppression Supports storm suppression based on port rate percentage Supports PPS-based storm suppression Support bps-based storm suppression
Jumbo Frame	The maximum frame length supported is 10000
MAC address table	Support black hole MAC address Support static and dynamic MAC Support MAC address automatic learning and aging Supports setting the maximum number of port MAC addresses to learn
VLAN	Port-based VLAN support Supports MAC-based VLANs Protocol-based VLAN IP subnet based VLAN Support QinQ, flexible QinQ* Support VLAN Mapping Support Voice VLAN Support SuperVLAN Support Guest VLAN Support PVLAN MVRP support
Layer 2 Ring Network Protocol	Support STP/RSTP/MSTP Support SmartLink Support RRPP
DHCP	DHCP Client DHCP Snooping DHCP Relay DHCP Relay SECURITY DHCP Server DHCP Snooping option82/DHCP Relay option82
IRF2 Intelligent Resilience Architecture	Support IRF2 Intelligent Resilience Architecture Support distributed device management, distributed link aggregation, distributed elastic routing Supports stacking via standard Ethernet interfaces, etc. Supports local stacking and remote stacking Supports stacking of 9 devices
IP routing	Support static routing Support RIPv1/v2, RIPng Support OSPFv1/v2, OSPFv3 Support BGP4, BGP4+ for IPv6 Support equal-cost routing, policy routing Support VRRP/VRRPv3
IPv6	Support ND (Neighbor Discovery) Support PMTU Support IPv6-Ping, IPv6-Tracert, IPv6-Telnet, IPv6-TFTP Support manual configuration of Tunnel Support 6to4 tunnel Support ISATAP tunnel Support IPv6 in IPv6 tunnel Support IPv4 in IPv6 tunnel Support GRE tunnel Support MLD SNOOPING
multicast	Support IGMP Snooping v1/v2/v3, MLD Snooping v1/v2 Support PIM Snooping Support MLD Proxy Support multicast VLAN Support IGMP v1/v2/v3, MLD v1/v2 Support PIM-DM, PIM-SM, PIM-SSM Support MSDP, MSDP for IPv6
mirror	Stream mirroring supported Support N:4 port mirroring Supports local and remote port mirroring
Support ACL\QoS	Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function, provide based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, Traffic Classification for VLANs IPv6 ACL support Support Time Range ACL Supports bidirectional ACL policies in inbound and outbound directions Supports issuing ACLs based on VLANs Support to limit the rate of receiving packets and the rate of sending packets, the minimum granularity is 8Kbps Support message redirection Supports 802.1p and DSCP priority re-marking of packets Support CAR (Committed Access Rate) function Support flexible queue scheduling algorithm, can be set based on port and queue at the same time, support SP, WRR, SP+WRR three modes WRED support
safety features	Support user hierarchical management and password protection Support 802.1X authentication/centralized MAC address authentication Maximum number of users per port Support Guest VLAN Support RADIUS authentication SSH 2.0 support Support port isolation Support port security Support EAD Supports DHCP Snooping to prevent spoofed DHCP servers Support dynamic ARP inspection to prevent man-in-the-middle attacks and ARP denial of service HTTPS support Support BPDU guard, Root guard Support uRPF (Unicast Reverse Path Detection) to prevent IP source address spoofing and prevent viruses and attacks Support IP/Port/MAC binding function Support plaintext and MD5 ciphertext authentication of OSPF and RIPv2 packets Support PKI (Public Key Infrastructure, public key infrastructure)
management and maintenance	Support XModem/FTP/TFTP loading and upgrading Support command line interface (CLI), Telnet, Console port for configuration Support SNMPv1/v2/v3, WEB network management Supports RMON (Remote Monitoring) alarms, events, and historical records Support iMC intelligent management center Support system log, hierarchical alarm, debug information output NTP support Support power alarm function, fan, temperature alarm Support Ping, Tracert Support VCT (Virtual Cable Test) cable detection function Support DLDP (Device Link Detection Protocol) unidirectional link detection protocol LLDP support Support Loopback-detection port loopback detection
green technology	Port automatic power down function Port scheduled down function (Schedule job)
Input voltage	AC: Rated voltage range: 100V ~ 240V AC, 50/60Hz		AC: Rated voltage range: 100V ~ 240V AC, 50/60Hz DC: Input rated voltage range -36V~-72V DC
Power consumption (static)	MIN: AC: 17W MAX: AC: 49W	MIN: AC: 20W MAX: AC: 58W	MIN: Single AC: 24W Single DC: 24W Dual AC: 29W Dual DC: 30W MAX: Single AC: 110W Single DC: 111W Dual AC: 114W Dual DC: 120W
Working temperature	0ºC~45ºC
Relative humidity of working environment (non-condensing)	10%-90%
