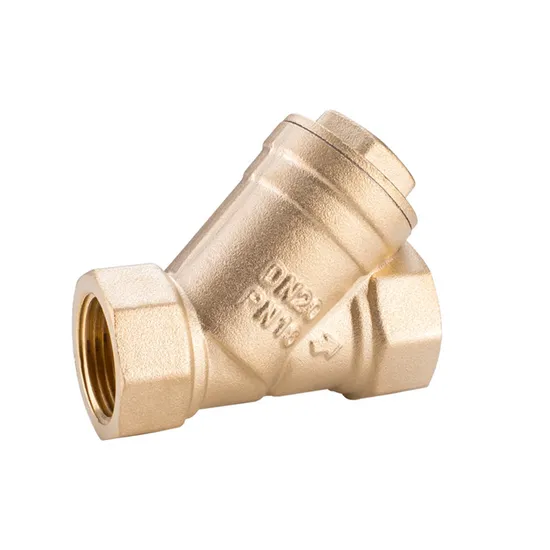

1/2" Bsp Female Thread Bronze or Brass Accepted Y Strainer with SS304 Filter

Product Description

1/2" BSP Female thread bronze or brass accepted Y Strainer with SS304 Filter Product Parameters

Item No.	JYL-7112
Body Material	Brass,Hpb57-3,Hpb59-1
Port Size	1/2"-4"
Connection End	Thread
Working Pressure	PN16
Female Thread Connections Comply With	ISO 228, NPT, BSP
Handle Color	Customized
Working Temperature	-10ºC ≤ t≤ 120ºC
Nominal Pressure	PN16
Medium	Water, oil, gas
Certified:	ISO9001:2008,CE,
Leakage	100% Testing
HS Code	8481804090
Surpace	Natural Color,Nickel plated, chromed
Delivery Way	By sea: Asia: 7~10 Days from China to local Port .Other country: wintin 30~35days to Local port .By Air,By Express: within 3~5 days to customers office or home .We offer one-stop services to your address or local port; EXW-Term, Shipping via specified forwarder and shipping company
Perment terms:	30% deposit ,70% against copy of BL
Packing:	polybag+white inner box+outer carton+pallet
Samples	With our current mould , samples can be offer within 10days after confirmed ;ODM with customers drawings or samples: it will take 20 days to make new mould and offer samples

Product Description

Handwheel	Iron
Gaskets	Brass,Hpb57-3
Gland Nut	Brass,Hpb57-3
Packing	PTFE
Bonnet	Brass,Hpb57-3
Clip Ring	Brass,Hpb57-3
Stem	Brass,Hpb57-3
Wedge disc	Brass,Hpb57-3
Body	Brass,Hpb57-3
Package size per unit product	42.cm * 32.cm * 22.5cm
Gross weight per unit product	20kg
Strainer	SS

Related Products
Factory Picture
Exhibition Show
Certifications
FAQ
1. Can I have a sample order for valve?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. Do you have any MOQ limit for valve order?
A: Low MOQ, 1pc for sample checking is available.
3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
4. How to proceed an order for valve?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
5. Do you offer guarantee for the products?
A: Yes, we offer 10 years warranty to our products.
.
6.Can you help to design when there is only sketch of drawing?
A: Yes, please provide us the requirement of design, we will design the rest of parts, ODM is available.
7:What is the form of packaging for valve and fittings? Can it be customized?
A: we adopt standard export packaging. Polybag in carton box packed in pallet.
And you may need to bear the extra charge for customized packaging.
8:Can I choose to partially ship by air if the products are in urgent need?
A: Yes, it is one option; you may need to afford the air freight charges.

9:When will I receive the valve after the payment?
A: It is usually 30days for production with MOQ. And there is extra shipment time that
