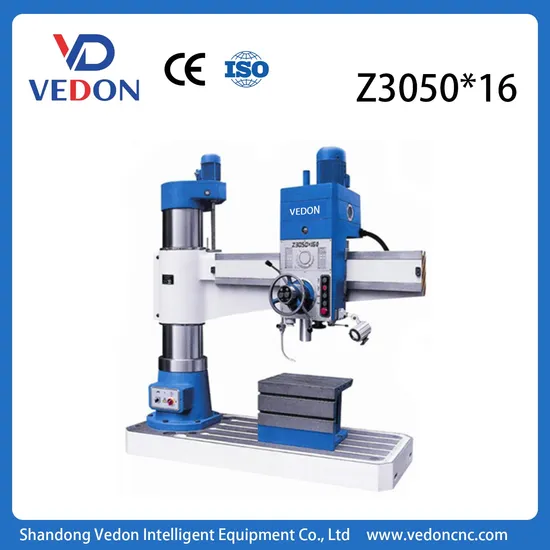

Key Machines Drill Press Machines Hydraulic Radial Arm Drilling Machine Z3050*16
Basic Info.
Model NO.
Z3050*16
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
2 Axis
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Max. Drilling Diameter
50mm
Overall Dimension
2500*1070*2840mm
2500*1070*2840m
4kw
Number of Spindle Feeds
16
Range of Spindle Feeds
0.04-3.2mm/R
Range of Spindle Speeds
25-2000rpm
Spindle Taper
Mt5
Column Diameter
350mm
Swivel Angle of Arm
+/-180°
Horizontal Travel of Spindle Head on Arm
1250mm
Distance From Spindle Nose to Working Su
32-1220mm
Distance From Spindle Axis to Column
35-1600mm
Transport Package
Wood Packing
Specification
700x1150x2150mm
Trademark
Vedon
Origin
China
HS Code
8459290000
Production Capacity
500pieces/Year
Product Description
Z3050*16Product Description
Product Parameters
| Model | Z3050*16/1 |
| Max. drilling diameter | 50mm |
| Distance from spindle axis to column | 35-1600mm |
| Distance from spindle nose to working surface of base | 32-1220mm |
| Horizontal travel of spindle head on arm | 1250mm |
| Swivel angle of arm | +/-180° |
| Column diameter | 350mm |
| Spindle taper | MT5 |
| Range of spindle speeds | 25-2000rpm |
| Number of spindle speeds | 16 |
| Range of spindle feeds | 0.04-3.2mm/r |
| Number of spindle feeds | 16 |
| Spindle travel | 315mm |
| Power of the main motor | 4kw |
| Workable size | 630*500*500mm |
| Overall dimension | 2500*1070*2840mm |
| Machine weight | 3500kg |
product details
Product Advantage
Packaging & Shipping
Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd. is a comprehensive enterprise in China whois specialized in metal cutting machinery and tools, coming with selfimport and export rights. VEDONTOOLS supply a wide range of products and service to its global customers, including vertical machining center, milling machine, lathe, radial drilling machine CNClathe, HSS&TCT annular cutter, magneticdrill machine, diamond drill machine
etc... T
hey are widely soldto morethan 50 countries and areas in Europe, South America, and Asia, relying on the reliable product quality, reasonable price and good after-sales service system. VEDONTOOLS follows the concept ofcredit management cooperation and win-win strategy, and it has good comments from society and clients. Here we sincerely hope to cooperate with you and create a bright future.
FAQ
Q1.Could I put my LOGO on it or paint my own color?
A:Yes, As long as the order quantity reach to the MOQ.
Q2.What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3.Could I order trail small order?
A:Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4.What points need to be confirmed before placing the order?
A:Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.
