Ecoographix Offset Printing Prepress Equipment Platesetter UV CTP

Product Description

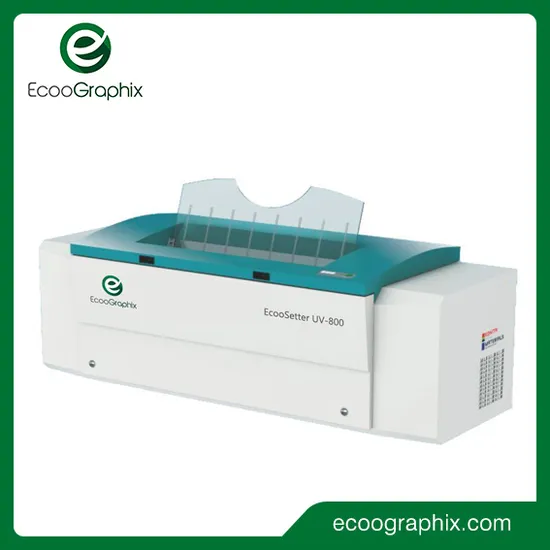

EcooGraphix Offset Printing Prepress Equipment Platesetter UV CTP
Model UV-800E
By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility. EcooGraphix UV 800 series Conventional CTP are for A1 or B1 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual, very easy to use.
Specification

Model	UV-800F	UV-800S	UV-800E
Exposing Method	External Drum
Imaging System	64-channel	48-channel	32-channel
	Discrete 405nm laser diode
Throughput	28plates/hour	22plates/hour	16plates/hour
	1030mm x 800mm, 2400dpi
Plate Sizes	Max.1130mm x 920mm Min.400mm x 300mm
Exposing Size	Max.1130mm x 884mm Min.260mm x 284mm
Media Type	positive UV-CTP/CTCP plate or high sensitive PS plate
Plate Thickness	0.14mm to 0.30mm
Resolution	2400dpi
Interface	USB 2.0
Plate Loading	semi automatic
Net Weight	900kg
Machine Size	2530x1050x950 (WxLxH)mm
Power Supply	single phase:220AC,+ 6%,- 10%, power consumption:4KW
Operation Environment	recommended:21-25ºC, Max.18-26ºC, humidity:40-70%

Producing and Packing
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

Our end users over the world


More details
FAQ
1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, inks, blankets, postpress packing equipments and so on.There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate.You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.2. What is your warranty for the CTPs?Three years' Laser Head and main spare parts for the CTP, one year for the processor.3. What is the Lead Time?Usually 10-30 days, and we will try our best to meet your demands.4. Can you also supply the Workflow and RIP?Yes, we can provide the Workflow Brain New and RIP Compose V9.5. What about the Installation and after-sales technician support?Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
