Basic Info.
Model NO.
DPS125/135/155/175/205
Transport Package
Iron Pallet
Specification
DPS125/135/155/175/205
Product Description

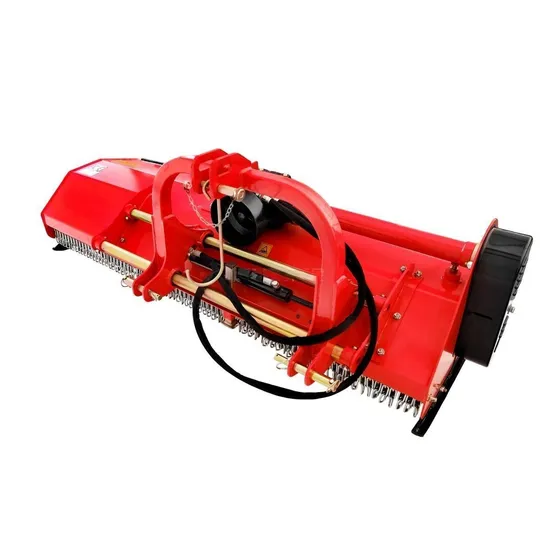

DPS Heavy Duty Flail Mower Mulcher With Hyraulic Shift The EFGC&EFGCH&DPS models are stronger and more powerful for maintaining more rugged landscape areas including heavy grasses, storm debris, sticks, vines and more around farms, properties, parklands and roadsides;
- Idea for thick grass, sticks, undergrowth and light vine mulching
- Vegetable & pasture topping;
- Roadside maintenance.
It is ideal for working on grass: orchard, nursery, in the greenhouse, and for gardening.Cast-iron gearbox with free wheel, sturdy toothed belts, double hitches, adjustable rear roller with mud scraper, front protection bulkheads, adjustable tensioner, side skids, electronically-balanced rotor, high blade tip speed to ensure perfect cutting, knives or hammer for grass, Cat. I universal three-point hitch cardan shaft. 50 HP Gearbox.Hydraulic kit included.
MODEL
| DPS135
| DPS155
| DPS175
| DPS195
| DPS205
|
CUTTING WIDTH(mm)
| 1350/1480
| 1550/1680
| 1750/1880
| 1950/2080
| 2050/2180
|
ROTOR SPEED
| 540rpm
| 540rpm
| 540rpm
| 540rpm
| 540rpm
|
MACHINE WEIGHT
| 380
| 400
| 440
| 460
| 475
|
POWER REQUIRED
| 25-40hp
| 40-55hp
| 45-65hp
| 50-70hp
| 50-75hp
|
Hammer
| 24
| 24
| 28
| 32
| 32
|
Y Blade
| 48
| 48
| 56
| 64
| 64
|
