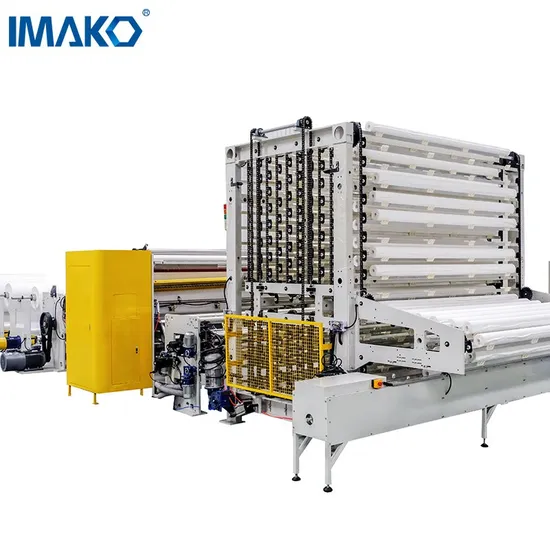

Small Business Jumbo Toilet Paper Machine Factory Price

Product Description

Product Description

Machine name &model

Machine configuration

facial tissue folding machine

Tissue folded size:200X(120-210)±2mm Tissue unfold size:100X(120-210)±2mm Jumbo roll width:1750mm Jumbo roll diameter:1100mm-1500mm Jumbo roll inner diameter:76.2mm Jumbo roll raw material:12.5-20g embossing,independent pneumatic regulation(depends on customer request) With steel to steel embossing unit Slitting unit:Pneumatic slitting Main motor:7.5KW Jumbo roll motor:0.75 KW(2 set) Vacuum suction unit:37KW 3HP air compressor min pressure 5kg/cm 2PA Timing belt 7950X3000X1860mm 10.0T-12.0T With full embossing steel to steel

Facial tissue machine is to cut a good plate of paper folded into the process "V" type of paper processing equipment, machinery and mechanical hand using vacuum assisted folding principle.
functions and features
1.The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets. This machine adopts independent servo motor drive ,automatic sipped,electrostatic treatment, security system ,automatic cutting and stop ,automatic tension adjustment,base paper power struggle,automatic marking functions. It features of high speed ,nice folding and easy operation .
2.Each unit are control by servo motor ,can adjust different raw material ratio of expansion and contraction
3.Wallboard rack and Machine running stability is extremely good fast
4.Pneumatic jumbo roll loading,pneumatic paper driving ,Stepless regulating speed ratio ,and web tension control.
5.Insertion point counting, simple and practical.
6.Equipped with edge embossing unit to keep the plies together
7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8.The web can be threaded on the machine by the two jog buttons,It's more safety and easier to thread the web.

Company Profile
IMAKO is a company entirely focused on the manufacture and design of automated package equipment for household paper industry. We always aim at developing user-oriented innovative solutions for worldwide tissue paper manufacturer to solve their production needs and efficiency problem. To become a global advanced machine manufacturer , we also designed and developed full automatic toilet paper production line, tissue napkin production line, handkerchief production line, hand towel production line,with rewinder, folder, cutter, single packer, bundling packing machine, case packing machine and robot palletizer.we also provide packaging solutions for personal care products like baby diaper packaging machine, wet wipes packaging machine and sanitary pad packaging machine that are built to deliver easy operation, high productivity, quick size changeover and simple maintenance.
Our mission is to innovate our technology to meet the future market changes and challenges, constinuously improve efficiency to help customers solve production problems. From design, production, solutions to services, we strive to provide you with satisfactory experience and to become your long-term partner. We will become a first-class brand of toilet paper machine manufacturer with first-class system and outstanding talents.We remember that without the trust of our customers, we would not be here we are today.
IMAKO has been dedicated to sanitary tissue packaging machinery industry for years, and has accumulated much experience. Value-added service to our client is our sole goal, mutual benefit is our base for development, solution is our answer to project.
IMAKO power comes from three aspects:
A professional team with rich practical experience in serving customers in the tissue industry for many years!
Provide customers with continuous and stable technical support and assistance!
Always adhere to a strong, innovative and leading corporate culture!
Nothing is the best but can be better and better. Choose our products to give you the best experience!
After Sales Service
Paymentterm:T/T,30%deposit and 70% before delivery.
Delivery:50 days upon receiving deposit.
Guarantee:One year.(The following problems are excluded from the warranty:due to accidents,misuse,misapplication,storagedamage,negligence,or modification to the Equipment or its components.)
After service:If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like airtickets,accommodation and local transportation.
