3.5inch TFT 320X240 LCD Display RGB 16.7m Color Depth

Product Description

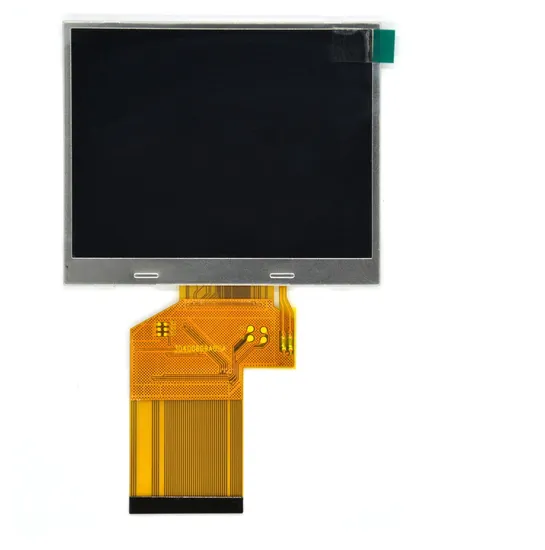

3.5inch Tft 320x240 Lcd Display RGB 16.7M Color Depth
GENERAL SPECIFICATIONS

Item	Description
Model Name	RYT0350RDW01
Product type	TFT LCD Module
Screen Size	3.5
Driver IC	HX8238D
Resolution	320(horizontal)X240(Vertical)
LCM Size(mm)	76.90*63.9*3.26
LCD Active Area(mm)	70.08X52.56
Display Mode	Normally White
With/Without TSP	Without TSP
LED Numbers	6 LEDs
Operation Temperature	-20º C~70ºC
Storage Temperature	-30º C~80ºC

OUR SERVICE ADVANTAGES
1.Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.
2.Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3.Payment Terms: T/T, Western Union,L/C, PayPal
4.Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5.Service: Best after-sales service to ensure satisfaction from customers.
6.Warranty: Usually, product warranty for one year.
7.Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
8.If mass production has any quality problem, customer can return it.
FEATURE
1. Low power consumption
2. High brightness and luminous intensity output
3. Easy assembly
4. High intensity and reliability
5. Low voltage and current operation
6. energy saving & long life
7. Solid-state LED chip based
8. Easy mounting on printed circuit board and sockets
9. Rhos&Reach approved
10. Better show effect and wide view angle
ABOUT US
Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
FAQ:
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.
Q:What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.
Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
Q:How long is the warranty and service of the product?
A:Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
