CE Electronic Electric Waterproof Double Door Cabinet Strike Bolt Rim Shear Electromagnetic Magnetic Lock with Signal Feedback/Time Delay /Buzzer Alarm

Product Description

Product Description

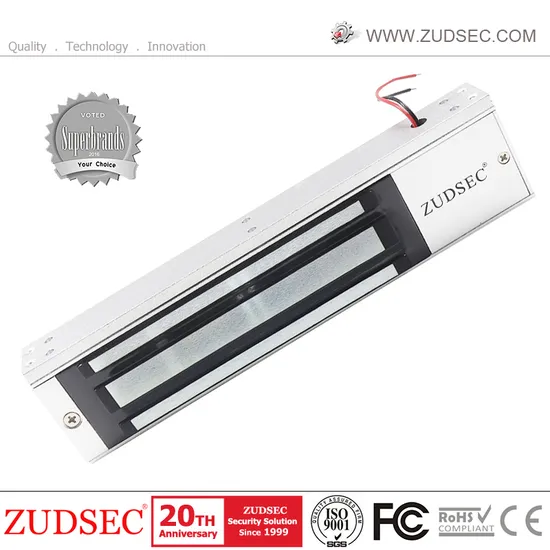

CE Certificated Electric Waterproof Double Door Electronic Electromagnetic Magnetic Lock with Signal Feedback/Time Delay /Buzzer Alarm
Magnetic lock with Signal & Time: With door state detection signal output: NO/NC/COM, with Adjustable delay locked 0-20 seconds; 180Kgs(300Lbs) / 280kgs(600Lbs) / 350Kgs(800Lbs) / 500Kgs(1200Lbs) optional, DC12V, or DC24, Suitable for: Wooden Door,Glass Door,Metal Door,Fire Proof Door.
* "S" series Lock Model: 5 wires With door state detection signal(NO/NC/COM) output function
- ZDL-180S: 180Kgs(300Lbs)
- ZDL-280S: 280kgs(600Lbs)
- ZDL-350S: 350Kgs(800Lbs)
- ZDL-500S 500Kgs(1200Lbs)
* "T" Series Lock Model: 4 wires with delay setting(0-20 seconds adjustable)
- ZDL-280T: 280kgs(600Lbs)
- ZDL-350T: 350Kgs(800Lbs)
- ZDL-500T 500Kgs(1200Lbs)* "ST" Series Lock Model: 5 wires with Signal output(NO/NC/COM) + Time Delay(0-20 seconds adjustable)
- ZDL-280ST: 280kgs(600Lbs)
- ZDL-350ST: 350Kgs(800Lbs)
- ZDL-500ST 500Kgs(1200Lbs)

Features - Holding Force: 180Kgs(300Lbs) / 280kgs(600Lbs) / 350Kgs(800Lbs) / 500Kgs(1200Lbs)
- With door state detection signal output function, for applications that require real-time monitoring of entrance door switch state occasions; NO /NC /COM, NO output when locking and unlocking the NC output
- With adjustable delay locked 0-20 seconds
- Bi-color LED to achieve opening and closing status display
- Fail-safe type (Power to lock): Power-on to lock, Power-off to open).
- Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
- Finishes for Shell: Anodized aluninum
- Finishes for Magnetic: Zinc
- Finishes for Armature: Zinc

Product Parameters

Specifications

Voltage: 12V, or 24VDC(customizable) Power consumption: 12V/320mA; 24V/250mA(customizable) for ZDL-180/280/350 12V/500mA; 24V/240mA for ZDL-500 Surface mounted Signal output:NO /NC /COM, NO output when locking and unlocking the NC output Red indicates the door is unlock,Green indicates the door is lock Delay setting: 0-20 seconds adjustable Surface Temp: ≤+20°C Operating Temp: 10~+55°C(14-131F) Suitable Humidity: 0~90% ZDL-180: Dimension:168×38×23mm(Body); 140×33×11mm(Magnet) Packing: 22.3*8*3cm, Weight: 0.95Kgs ZDL-280: Dimension:250×48×27mm(Body); 183×38×12mm(Magnet) Packing size: 26.5*6.5*6cm, Weight: 1.9Kgs ZDL-350: Dimension:240×56×29mm(Body); 160×44×11mm(Magnet); Packing size: 26.5*6.5*6cm, Weight: 2.1Kgs ZDL-500: Dimension:265×73×41mm(Body), 185×62×13mm(Magnet); Packing size: 28.5*8*7.5cm, Weight: 4.3 Kgs
