Metal Vessel Tank Shell and Dish End Polishing Machine

Product Description

Product Description

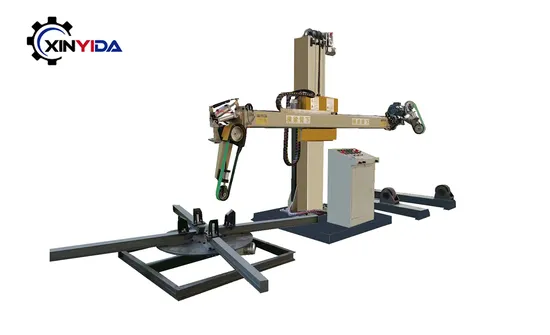

The equipment consists of a beam, a column, a base, a tank grinding head, a grinding head for dished end, a tank rolling table, a dished end rolling table, a control cabinet and other components. Suitable for tank with diameter φ800mm-3000mm, dished end with diameter φ500mm-3000mm inside and outside polishing, optional dished end's turntable load range: 1-20 tons.
Main Technical Parameters

Machine dimension	L*W*H(in: mm): 3800*1600*3080
Machine weight	2500KGS
Input power	8KW
Control system	PLC/CNC
Polishing materials	Abrasive Belt, Nylon Wheel, Cloth Wheel, Thousand Impeller, and etc.
Machining accuracy	surface roughness Ra≤0.4μm
Producing efficiency	8m2/h

Specification of workpieces:

Workpiece size	For tank body	Diameter	800mm-3000mm
		Max. length	2500mm
		Max. weight	20T
	For dished end	Diameter	500mm-3000mm
		Max. depth	2500mm
		Max. weight	20T

Product Features: Servo Control System One Button Operation Pneumatic Clamping Optional GHS dust collector 2 in 1 polishing machine High Efficiency Satiable Running with convenient operation
Packaging Details
1.PE film cover on machine.
2.Carton protection in Plywood case.
3.Or based on your requirements.
Port
Shanghai Port / Nanjing Port / Customer Demand
Technical Service:
1) Design rational process for customers according to their product positioning.
2) Help customers carry out technological transformation on the entire process to improve their production efficiency and capacity.
3) Customize polishing machine configurations and other manufacturing equipment for customers; provide spare parts to equipment users.
4) Help customers test, inspect and analyze new processes, and offer reasonable suggestions and improvement proposals.
5) Improve customer operation on polishing equipment; train their ability to use the equipment and improve their application efficiency.
6) Provide software train for customers and software design of special patterns.
7) Provide processing service for special products.
8) Provide professional designers of technological application to equipment users.
9) Provide technical advice, equipment maintenance and repair services.
After-sales Service:
• Free on-site installation and commissioning. (Customer provides air ticket + accommodation)
• 24-hour service hotline; providing free instruction and answering your questions.
• Life-time maintenance; one-year warranty. After warranty, we provide reasonable prices of spare parts and service.
• Once a year on-site free maintenance. (Customer offers airfare + accommodation, or completed by our local agent)
• Comprehensive and systematic technical training, to ensure your correct operation of the equipment.
