Shrinkable Pet Film Center Sealing Machine
| US$11,000.00-30,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
ZHA-300
Packaging
Bottles
Automatic Grade
Semi-Automatic
Packaging Material
Film
Application
Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Vegetable, Fruit
Usage
Outpacking
Type
Sealing Machine
Packaging Material Mechanical Properties
Flexible Container Sealing
Material Type
Liquid
Sealing Width
300mm
Unwinder Tension
Magnetic Brake
Traction
Servo Motors+Loadcell
Oscillation
Servo Motor
Rewinder
Servo Motor
PLC
Siemens
Transport Package
Export Wooden Case
Specification
CE, ISO9001
Trademark
Zhongtai
Origin
China
HS Code
8477800000
Production Capacity
100
Product Description
ZHA-300 Shrinkable PET film Center Sealing Machine1)Stable and heavy-duty frame for high speed operation of 300n/min.
2) Adjustable forming plate creates efficient operation.
3) Auto solvent feeding control.
4) Auto tension control for unwind/rewind unit to maintain the optimun tension.
5) Good brand EPC device, precision 0.1mm.
6) Accurate product width.
7) Cantilevered rewind/unwind shaft for fast roll changeover.
8) PLC with color touch screen control system.
9) Copper tubing with felted wool for gluing, work with glue pump (dispenser) and PLC. The PLC can control the glue capacity with speed changes.
10) Rewind oscillation control to produce high quality rolls.
11) Static eliminator is adopted before rewinder.
12) Whole machine with 4 pcs of servo motors(for traction, rewinder, oscillation), and 1pc magnetic powder brake for unwinder.
13) Linear perforation.
| Model | 300mm |
| Width of Unwinding | 620mm |
| Diameter of Unwinding | 600mm |
| Diameter of Rewinding | 700mm |
| Min. Sealing size | 60mm |
| Max. Sealing size | 300mm |
| Max speed of Working | 300m/min |
| Max speed of Machine | 330m/min |
| Voltage of Whole Machine | 380V/50HZ |
| Dimension of Whole Machine | 2000x1300x1550mm |

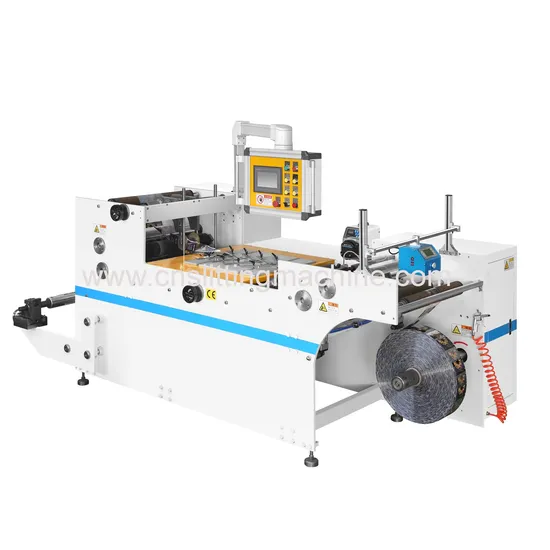

Machine photos:
Zontai machine packages:
