CD194z Series Network Power Meter

Product Description

CD194Z Series Network Power Meter
Models

Shape Symbol	Frame size	3 row LED digital display	Segment code LCD display
2	120*120	CD194Z-2S4	CD194Z-2SY
3	83*83	CD194Z-3S4	CD194Z-3SY
9	96*96	CD194Z-9S4	CD194Z-9SY

Main features
1, Can measure all three - phase power grid : U , I , P , Q , PF , F , etc .
2, Positive and negative active and reactive power can be measured.
3, There are two power pulse output;
4, You can monitor and control the power switch:
Have 4 circuit switch value input;Maximum 4 circuit Analog output;
5, You can set multi-parameter limit alarm;
6, PT/CT variable ratio can be set;
7, There are two RS485 interfaces that support Modbus-rtu protocol;
8, The communication can be connected to the SCDAN PLC system;
9, LED digital tube display or Segment code LCD display;
Summarize
The new intelligent Network Power meter CD194E series is having the unified style,programmable power measurement ,digital display ,digital communications ,and variety of inputs and outputs with high efficiency performance.

CD194E series Network Power Meter measures mostly common power parameters, and also presences of reactive power with extensions such as RS485 communication, switches value of inputs and outputs, electrical pulse output and analog output. The Switching values of inputs are used to monitor the status of the switch; also the switching values of outputs are remotely controlled and off-limit alarm. Further, the Analog output function of CD194E is the best choice to be the replacement of traditional transmitters under request. Certainly, all data can be read through the RS-485 communication port.

CD194E power meter adapt to all the voltage grades and connection mode; it meets the distribution and concentration of all kind of high and low voltage switchgear installations.
Applications
The side range of applications of CD194E series Network Power Meter are its specialty which suits for higher requirements of power monitoring and safety. The CD194E offers the needs for places serve the internal power measurements such as energy management systems, industrial automation, power monitoring, substation automation, intelligent buildings, power distribution panel and switch cabinets, etc.
ORDERING INFORMATION
1 Shape (Unit:mm)

2 Functional:
S:Multi-Function Smart Power Meter; Z:Network Power Meter
F:Complex rate electricity meter; H:Harmonic electric energy meter
3 Display:
4: 3 row LED digital display;
7: 2 row LED digital display;
9: 4 row LED digital display;
Y: Segment code LCD display;

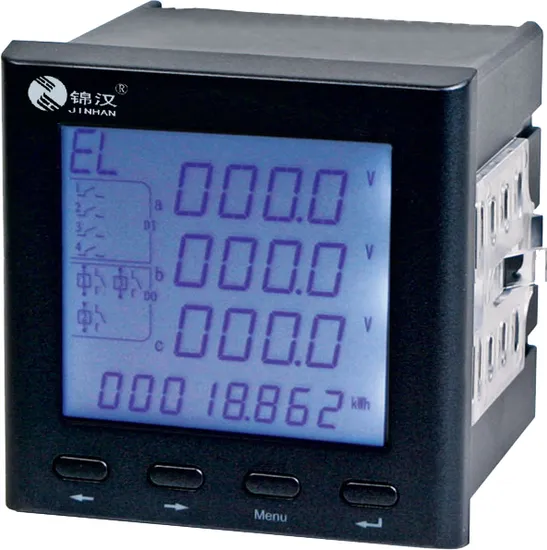

Detailed Photos
