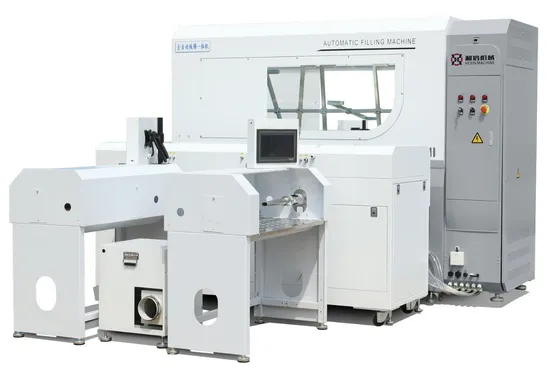

Big Grams Automatic High Precise Weighing Down and Fiber Filling Machine with Single Side
| US$3,000.00-15,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
RM2-8D
Feature
Automatic Weighing
Filling Valve Head
Doubie-Head, Multi-Head
After-Sales Service
Technical Engineer Support
Filling Port
2 PCS
Machine Weight
1050kg
Installation Size
4000*4000mm
Daily Workload
12000-30000 Times
Filling Nozzle Size
16mm, 19mm, 25mm, 38mm
Single Weighing Range
0.5-70g(Down), 1-120g(Cotton)
Single Error
0-0.1g
Cycle Number
4
Accuracy
0.01g
Power
4.5kw
Type
Weighing-Type Filling Machine
Feed Cylinder Structure
Multi-Room Feeding
Dosing Device
Capacity Cup
Filling Principle
Vacuum
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Rotary
Packaging Material
Plastic
Warranty
1 Year
Material Type
Down and Fiber
Packaging
Film
Transport Package
Wooden Box
Specification
Installation size: 4000*4000mm
Trademark
Hexin
Origin
China
HS Code
8453800000
Production Capacity
100 Sets/Month
Product Description
Double Heads Eight Scales Automatic Down and Cotton Filling Machine(big grams and single side) Product Parameters| Model | RM2-8 D |
| Number of filling ports | 2 |
| Machine weight | 1050KG |
| Installation Size | 4000*4000mm |
| Daily workload | 12000-30000 times |
| Filling nozzle size | 16mm 19mm 25mm 38mm |
| Filling material | Down, pearl cotton, silk cotton |
| Single weighing range | 0.5-70g (down), 1-120g(cotton) |
| Single Error | 0-0.1g |
| Host Shape Size(mm) | 2500*1100*1900 |
| Weighing Box Shape Size(mm) | 2200*800*1300 |
| Cycle number of single head | 4 |
| Accuracy class | 0.01g |
| Power | 4.5KW(AC220V) |
| Automatic iron removal function | Support |
| More refunds and less supplements | More refunds and less supplements, accurate and saving down |
| Apportion big grams | Can fill a larger range |
| Fragment supplement function | One click immediate filling function after missed filling |
| Automatic down returning function | Change the gram weight and simplify the operation |
| Automatic constant humidity function | Automatically control the humidity of down inside the machine |
| USB data input | USB data input |
Company Profile Tangshan Hexin Garment Machinery Co., Ltd. is a modern production enterprise specializing in the manufacturing of garment machinery integrating research, development, manufacture and sales together. After years of R&D and experience accumulation, the company's products are sold to domestic market and overseas markets, such as South Korea, Vietnam, Myanmar, Cambodia, etc. The domestic market mainly includes Beijing, the three northeastern provinces, Anhui, Shandong, Wuhan, Tianjin, Hubei, Xinjiang, Henan, Chongqing and other major clothing production bases. The electric parts adopt well-known domestic and international brands, such as Delta PLC, German HBM sensor, Taiwan MEANWELL regulated power supply, Airtac pneumatic parts, Japanese SMC pressure regulating valve, CHINT Electric, etc. The company has advanced technology and strong scientific research strength, and is committed to creating higher value for customers and leading the garment machinery industry.
The company's main products include automatic down filling machine, automatic cotton filling machine, flow machine, automatic down filling machines, etc. single head with two weighings, single head with three weighings, single head with four weighings, single head with six weighings, double head with four weighings, double-head with six weighings, double-head eight weighings, double-head twelve-weighing, four-head sixteen-weighing automatic down filling machine and cotton filling machine, etc. In order to meet the personalized needs of customers, we can provide customers with tailor-made solutions.
Electrical parts
| Name | Brand and Origin |
| PLC | Delta/Xinje |
| Sensor | HBM(Germany) |
| Regulated power supply | MW(Taiwan) |
| Controller | Delixi |
| Pneumatic parts | AirTAC |
| Pressure Regulating Valve | Japan SMC/AirTAC |
| Touch Screen | MCGS |
