ISO 9001 Approved Chuck CNC Lathe Machine with High Quality Kdck-40

ISO 9001 Approved Chuck CNC Lathe Machine with High Quality Kdck-40

US$41,833.00-48,986.00 1 Set (MOQ)

Basic Info.

Model NO.
KDCK-40
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle Bore
105mm
Max Swing Over Bed
750mm
Tool Turret
12 Way
Spindle Speed
100-2500rpm
Max Turned Length of Workpiece
870mm
Main Motor
15/18.5 Kw
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
410 Sets/Year

Product Description

ISO 9001 Approved Chuck CNC Lathe Machine with High Quality KDCK-40
Product Description
MODELS
KDCK-40
CAPACITY

Max. swing over bed
Ф750mm
Max. cutting diameter for disc parts
Ф700mm
Max. cutting diameter for axle parts
Ф350mm
Max. length of workpiece
870mm
TRAVEL

Max. cross travel(X)
350mm
Max. longitudinal travel(Z)
1050mm
FEED

Rapid feed for axis X
12m/min
Rapid feed for axis Z
30m/min
SPINDLE

Max. speed of spindle
100-2000rpm
Spindle nose
Ф105mm
Spindle bore
Ф220mm
Type of spindle motor
Variable frequency
Spindle motor power
15/18.5kw

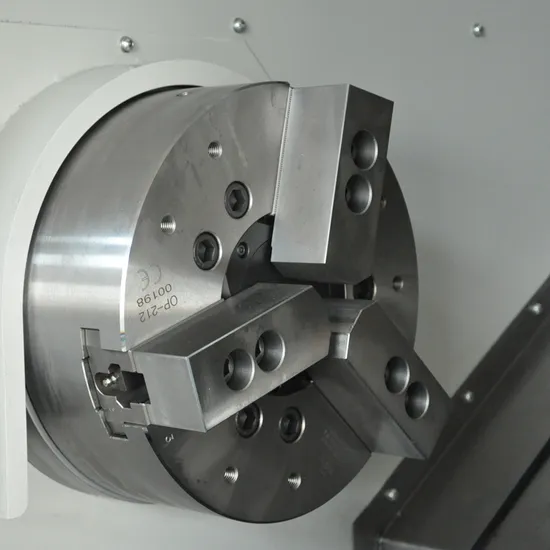

Hydraulic chuck
12″
TOOL POST

Tool number
12
Outside diameter of cutting tool shank
25×25mm
Inner dia. of cutting tool shank
Ф40mm
TAILSTOCK

Tailstock sleeve dia.
Ф100mm
Tailstock sleeve travel
210mm
Taper hole of tailstock quill
M.T.No.6
OTHERS

Repeatability
≤0.006mm
Min. input
0.001mm
Bed structure
30° slant bed (two pieces of bed stand)
Overall dimensions(L×W×H)
3375×2250×1965mm
Net weight
5400kg
