China Permanent Strong Neodymium NdFeB Round, Block, Ring, Arc, Disc, Cylinder, Countersunk, Segment Magnet

Product Description

China Permanent Strong Neodymium NdFeB Round/Block/Ring/Arc/Disc/Cylinder/
Countersunk/Segment Magnet
Support ODM / OEM. Free Samples Available.

Type	Permanent Sintered Rare Earth Neodymium Magnets
Material	NdFeB (Neodymium Iron Boron)

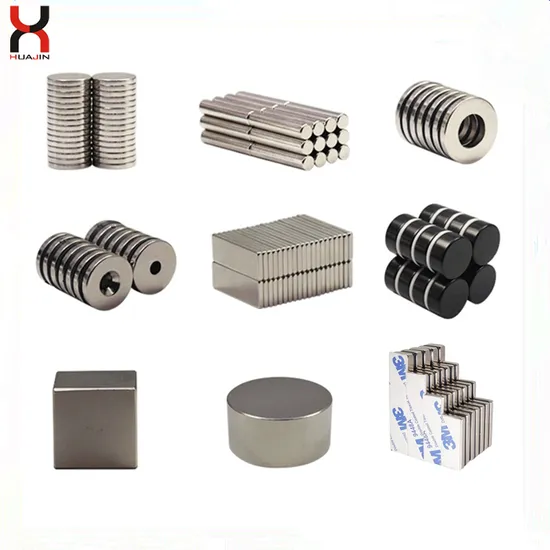

Shape	Block, Disc, Arc, Ring, Cylinder, Countersunk
Size	Customized according to customers' requirements
Coating	Ni, Zn, Epoxy, etc
Density	7.5-7.6 g/cm³
Delivery date	1-2 days for common samples 8-10 days for mass produciton

Magnetic Grade & Working Temperature	Magnetic Grade	Max. Working Temperature
	N35-N52	80ºC (176ºF)
	35M-52M	100 ºC (212 ºF)
	33H-50H	120ºC (248 ºF)
	33SH-45SH	150 ºC (302 ºF)
	30UH-40UH	180 ºC (356 ºF)
	28EH-38EH	200ºC (392 ºF)
	28AH-33AH	220 ºC (428 ºF)

Magnetization Direction
Axially (default) or Diametrically

Welcome To OEM/ODM With Us For NdFeB & Visit To Our Factory!

Company Profile

Nanjing Huajin Magnetic Materials Co., Ltd. Specializing in the production and sale of magnetic NdFeB, magnetic bar, magnetic products, magnetic frame. Magnets of various shapes and sizes can be produced according to customer requirements, such as pack diskette, the motor magnetic tile, magnetic ring, toy bar magnet, magnetic ball, with the exception of iron magnetic rods, magnetic hooks, magnetic separator box;Surface treat: Gold, silver, plated epoxy, nickel- plated copper-nickel, zinc, chromium, titanium (zinc, black zinc, color zinc), above the surface treatment to meet environmental requirement.
Product Parameters

Grade	Remanence		Coercivity Force		Intrinsic Coercive Force		Max. Energy Product		Working Temp.
	Br		Hcb		Hcj		(BH)max
	mT	kGs	kA/m	kOe	kA/m	kOe	kJ/m3	MGOe
N35	1170-1220	11.7-12.2	≥ 868	≥ 10.9	≥ 955	≥ 12	263-287	33-36	80 ° C
N38	1220-1250	12.2-12.5	≥ 899	≥ 11.3	≥ 955	≥ 12	287-310	36-39	80 ° C
N40	1250-1280	12.5-12.8	≥ 907	≥ 11.4	≥ 955	≥ 12	302-326	38-41	80 ° C
N42	1280-1320	12.8-13.2	≥ 915	≥ 11.5	≥ 955	≥ 12	318-342	40-43	80 ° C
N45	1320-1380	13.2-13.8	≥ 923	≥ 11.6	≥ 955	≥ 12	342-366	43-46	80 ° C
N48	1380-1420	13.8-14.2	≥ 923	≥ 11.6	≥ 876	≥ 12	366-390	46-49	80 ° C
N50	1400-1450	14.0-14.5	≥ 796	≥ 10.0	≥ 876	≥ 11	382-406	48-51	60 ° C
N52	1430-1480	14.3-14.8	≥ 796	≥ 10.0	≥ 876	≥ 11	398-422	50-53	60 ° C
35M	1170-1220	11.7-12.2	≥ 868	≥ 10.9	≥ 1114	≥ 14	263-287	33-36	100 ° C
38M	1220-1250	12.2-12.5	≥ 899	≥ 11.3	≥ 1114	≥ 14	287-310	36-39	100 ° C
40M	1250-1280	12.5-12.8	≥ 923	≥ 11.6	≥ 1114	≥ 14	302-326	38-41	100 ° C
42M	1280-1320	12.8-13.2	≥ 955	≥ 12.0	≥ 1114	≥ 14	318-342	40-43	100 ° C
45M	1320-1380	13.2-13.8	≥ 995	≥ 12.5	≥ 1114	≥ 14	342-366	43-46	100 ° C
48M	1360-1430	13.6-14.3	≥ 1027	≥ 12.9	≥ 1114	≥ 14	366-390	46-49	100 ° C
50M	1400-1450	14.0-14.5	≥ 1033	≥ 13.0	≥ 1114	≥ 14	382-406	48-51	100 ° C
35H	1170-1220	11.7-12.2	≥ 868	≥ 10.9	≥ 1353	≥ 17	263-287	33-36	120 ° C
38H	1220-1250	12.2-12.5	≥ 899	≥ 11.3	≥ 1353	≥ 17	287-310	36-39	120 ° C
40H	1250-1280	12.5-12.8	≥ 923	≥ 11.6	≥ 1353	≥ 17	302-326	38-41	120 ° C
42H	1280-1320	12.8-13.2	≥ 955	≥ 12.0	≥ 1353	≥ 17	318-342	40-43	120 ° C
45H	1300-1360	13-13.6	≥ 963	≥ 12.1	≥ 1353	≥ 17	326-358	43-46	120 ° C
48H	1370-1430	13.7-14.3	≥ 995	≥ 12.5	≥ 1353	≥ 17	366-390	46-49	120 ° C
33SH	1130-1170	11.3-11.7	≥ 844	≥ 10.6	≥ 1592	≥ 20	247-271	31-34	150 ° C
35SH	1170-1220	11.7-12.2	≥ 876	≥ 11.0	≥ 1592	≥ 20	263-287	33-36	150 ° C
38SH	1220-1250	12.2-12.5	≥ 907	≥ 11.4	≥ 1592	≥ 20	287-310	36-39	150 ° C
40SH	1240-1280	12.5-12.8	≥ 939	≥ 11.8	≥ 1592	≥ 20	302-326	38-41	150 ° C
42SH	1280-1320	12.8-13.2	≥ 987	≥ 12.4	≥ 1592	≥ 20	318-342	40-43	150 ° C
45SH	1320-1380	13.2-13.8	≥ 1003	≥ 12.6	≥ 1592	≥ 20	342-366	43-46	150 ° C
30UH	1080-1130	10.8-11.3	≥ 812	≥ 10.2	≥ 1990	≥ 25	223-247	28-31	180 ° C
33UH	1130-1170	11.3-11.7	≥ 852	≥ 10.7	≥ 1990	≥ 25	247-271	31-34	180 ° C
35UH	1180-1220	11.8-12.2	≥ 860	≥ 10.8	≥ 1990	≥ 25	263-287	33-36	180 ° C
38UH	1220-1250	12.2-12.5	≥ 876	≥ 11.0	≥ 1990	≥ 25	287-310	36-39	180 ° C
40UH	1240-1280	12.5-12.8	≥ 899	≥ 11.3	≥ 1990	≥ 25	302-326	38-41	180 ° C

Purchasing Guides:
To offer you prompt and best prices, pls kindly furnish us the following details:
1) The dimension, coating, grade and magnetism direction(Axial or Radial)
2) Order Quantity( Prices depends on quantities)
3) Application(If you are not sure about the size, pls let us know the usage, then we can give some professional recommands)
4) Drawings offering if you have.
5) Other customized requirements

Widely Applications 1). Electronics - sensors, hard disk drives, sophisticated switches, electro-mechanical device.
2). Auto Industry - DC motors, small high-performance motors, power steering;
3). Medical - MRI equipment and scanners;
4). Clean Tech Energy - Water flow enhancement, wind turbines;
5). Magnetic Separators - Used for recycling, food and liquids QC, waste removal;
6). Magnetic Bearing -used for highly sensitive and delicate procedures in various heavy industries.

Our Advantages 1. 10 years professional Neodymium Magnet Manufacturer
2. Trade Assurance to Secure your trade safety
3. High quality Rare earth Materials used.
4. Fast delivery Time for magnet produce and Magnetic Assemblies.
5. Free sample available.
6. Difference Specification Choice
7. Experienced Staff
8. Advanced equipment
9. OEM are welcomed,samples is available,small orders accepted
10.100% Quality & Best Service Guarantee:competitive pricing doesn't mean we skimp on service. Our fully staffed office of experienced professionals strives to return your quote on the same business day.
11. Payment:We can accept T/T,Westernion Union,Paypal
Customers' Feedbacks
Packaging & Shipping Package: Magnetic Isolation Package
Carton: 36*27*15CM
1. By Express(DHL, FedEx, TNT, UPS ect): Door to door, Short Delivery time, 3-5 days.
2. By Air: Short Delivery Time, 3-7 days.
3. By Sea: Cheap Shipping Cost, 7-30 days. FAQ 1. How to get quick quotation?
Kindly offer us the specific size, quantity, coating(zinc/nickel), magnetism direction ect other requiries. Then best price will be offered ASAP.
2.What about the lead time?
(1) Sample: 5-7 days.
(2) Batch quantity: 7-12 days.
3.What's the MOQ?
(1) Spot Stocks: No MOQ;
(2) Regular Size: 500 PCS, 1000 PCS, 2000 PCS, 5000 PCS ect.
(3) Other Size: 2000 PCS, 5000 PCS, 10000 PCS ect.
4. Terms of Paymemt:
(1). T/T in advance(telegraphic transfer-bank order)
(2). Western Union cash - for small order or samples order.
(3). PayPal- for small order, quick receipt
