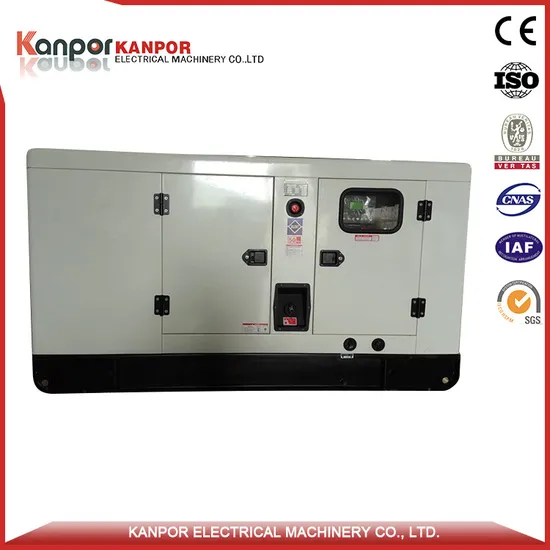

Weifang Series Ricardo Generator 60kVA White Diesel Generator Factory Supply 50Hz
| US$2,200.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KPR66
Type
Self-Starting Diesel Generator
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Speed
HSS
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Low Noise Automation Type
Excitation Mode
AC Rotating Exciter
Certificate
CE ISO SGS Soncap TUV
Voltage
220V/127V 380V/220V 400V/230V 415V/240V 480V/277V
Engine Model
Ricardo Engine
Option
ATS
Phase
1 Phase, 3 Phase
Rated Power
48kw/60kVA
Transport Package
Plywood Case
Specification
2350x1050x1300mm
Trademark
Kanpor
Origin
Fujian, China(Mainland)
HS Code
8502110000
Production Capacity
500PCS Per Month
Packaging & Delivery
Package Size
430.00cm * 160.00cm * 250.00cm
Package Gross Weight
4900.000kg
Product Description
1. GENERATOR DATA
Voltage Available:
50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client's request
Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
Product Data
| Technical Data | ||||||
| Genset Model | KPW65 | KPW80 | KPW94 | KPW110 | KPW135 | |
| Rated Power | KW/KVA | 48/60 | 58/72.5 | 68/85 | 80/100 | 96/120 |
| Standby Power | KW/KVA | 52/65 | 64/80 | 75/94 | 88/110 | 108/135 |
| Rated Voltage | V | 220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V | ||||
| Speed | RPM | 1500/1800 | ||||
| Rated frequency | Hz | 50/60 | ||||
| Engine Model | R4105ZD | R4105IZLD | R6105ZD | R6105AZD | R6105AZLD | |
| Engine Power | KW | 56 | 67 | 84 | 100 | 121 |
| Air intake way | Turbo | Turbo | Turbo | Turbo | Turbo | |
| Governor | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | |
| Cylinder | QTY | 4 | 4 | 6 | 6 | 6 |
| Bore*Stroke | mm*mm | 105x125 | 105×125 | 105×125 | 105×130 | 105×130 |
| Displacement | L | 4.33 | 4.33 | 6.49 | 6.75 | 6.75 |
| Fuel Consumption | g/kw.h | 231 | 239 | 224 | 224 | 224 |
| Compression Ratio | 17:1 | 16:1 | 17:1 | 16:1 | 17:1 | |
| Alternator Model | STF-224E | STF-274F | STF-224G | STF-274C | STF-274D | |
| Voltage Regulation | AVR | |||||
| Excitation Method | Brushless | |||||
| Open Type Size | mm | 1950x900x1200 | 1950x900x1200 | 2400x900x1500 | 2400x900x1500 | 2500x900x1500 |
| Open Type Weight | kg | 900 | 1050 | 1250 | 1350 | 1400 |
| Soundproof Size | mm | 2350x1050x1300 | 2350x1050x1300 | 2800x1050x1600 | 2800x1050x1600 | 2900x1050x1700 |
| Soundproof Weight | kg | 1300 | 1680 | 1950 | 2050 | 2150 |
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice
