M2 Hot Melt Glue Soft Cover Creasing Function Paper Notebook Binding

Product Description

M Series Intelligent PUR Glue Binder and Digital Creaser 2-in-1 Machine Video : http://bowaychina.en.made-in-china.com/custom/M-Series-Totalintelli-Glue-Binder-and-Digital-Creaser-2-in-1-Machine-DmgxoIHdVEYz.html

******The pricture and specifications are subject to change without prior notice.******
******Any question, please confirm with our sales manager.******
******All rights of photos and imaging reserved by Boway.******
Welcome to BOWAY

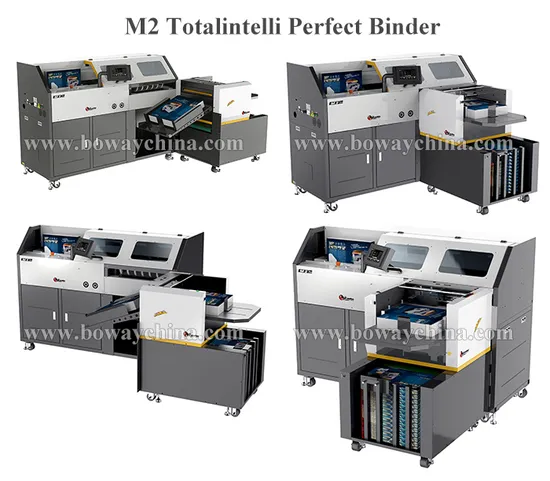

M2 Totalintelli Perfect Binder and Digital Creaser Highlight
♦ Totalintelli Perfect Binder
♦ Digital Creaser
♦ Two in One
♦ One to two also
♦ M Series Totalintelli Perfect Binder and Creaser
♦ She, Totalintelli Perfect Binder
♦ She, Digital Creaser also
♦ She, can combine two to one, works as totalintelli perfect binder.
♦ She, can divide one into two , works separately as perfect binder and digital creaser
♦ Open and close , easily transform!
♦ Click and press, easily bind book!
♦ Money and work, double save, high speed and performance!
PUR adhesive has only been in bookbinding since about 1989, and the first test in North America was run with a homemade application system. Since its introduction, PUR use has increased dramatically. In 1995, there were reportedly PUR users, by the end of 2002, this number had increased, the eased to more than 50 in North America. PUR is unique in that it will bond to lacquer and UV-cured coating, films such as Myalr, as well as paper. PUR Binding, also known as POLYURETHANE REACTIVE differs from traditional Hot Melt Adhesive style of binding, which is typically based on EVA glue or (ethyl vinyl acetate.). P.U.R. Binding exhibits considerably stronger adhesion with high gloss coated or synthetic papers.Any type of book requiring more rugged usage such as a student work book, yearbook, textbook, music book, etc. Is a great candidate for PUR Binding. (PUR GLUE ,Only M5,M6 Model)
Specifications :

Model No.	M2	M3(sealed gluing)	M5(PUR) on research	M6(PUR) on research
Bind Length(mm)	435	435	435	435
Bind thickness(mm)	58	58	58	58
Max cover size (mm)	675x435	675x435	675x435	675x435
Min cover size (mm)	130x260	130x260	130x260	130x260
Max cover thickness (gsm)	100-300	100-*300	100-300	100-300
Cover pile height (mm)	900	900	900	900
Work speed (book/hour)	300-450	300-450	300-450	300-450
Book clamp	√	√	√	√
Glue melt time (min)	About 35mins	About 35mins	About 35mins	About 35mins
Gluing way	Double glue rollers	Sealed gluing(special EVA)	Sealed gluing (PUR)	Sealed gluing(PUR)
Gluing control device	√	√	√	√
Side gluing	√	√	√	√
Smoke extract	√	√	√	√
Book block vibration	√	√	√	√
Anti Hand clipping	√	√	√	√
Milling system	Milling+notching knives	Special milling cutter	Special milling cutter for PUR	Special milling cutter for PUR
Cover clamping way	Automatically	Automatically	Automatically	Automatically
Book block clamping way	Automatically	Automatically	Automatically	Automatically
Display	7" touch screen	7" touch screen	7" touch screen	7" touch screen
Cover clamp station adjustment	√	√	√	√
Cover feeding	Up air suction	Up air suction	Up air suction	Up air suction
Cover creasing	Digital creasing	Digital creasing	Digital creasing	Digital creasing
Double sides creasing	×	√	√	√
Book thickness measure	√	√	√	√

Feature :
♦ Large format crease/cover feed
♦ Max creasing size 480mm, max cover size 435mm, meet different demand
♦ Auto both sides creasing
♦ Separate digital ceasing function, both sides at same time, just need click menu to choose single or both sides crease, spine line, opening line and overlapping line finish at same cycle.
♦ Auto readout book thickness
♦ After readout book thickness, the data will be transferred to cover feed system and start creasing
♦ Touch Screen operation
♦ All set-up, work order finished on the touch screen, two interface, one is for binding, the other is for creasing. And the screen turn around easily
♦ Auto books delivery function
♦ Finished books will be automatically delivered to lifting table. Alarming appears when the lifting table is full.
♦ Auto detection for book clamping
♦ The clamps automatically close when the papers well placed. It is ensures high efficiency.
♦ New gluing control technology
♦ More accurately control the gluing at two ends of spine, avoid excess glue left on the end of spine
♦ Intelligent side-gluing patent
♦ Glue tank cover opens before carriage comes, ensures better glue spreading, and avoid carriage damage
♦ Tens of error alarming
♦ When wrong operation happens, the controller will automatically alarm and give guide.
♦ Intelligent control, 7 inch colorful touch screen
♦ 64bits chip, powerful setting-up function, colorful touch screen, self-diagnose, auto-alarming, help you to easy opeate the machine; lots of devices of this machine can automatically open and close by detection. This is a smart and easy to operate machine
♦ Sealed gluing technology ( M3 , M5 , M6 )
♦ Sealed eject gluing, more thin,more even, more environment-friendly
♦ Sealed PUR technology ( M5 , M6 )
♦ 180 degree open, no problem with ground paper, no page drop
Trading Terms

Terms of payment	T/T, L/C, Westion Union.
Terms of trade	FOB, CFR, CIF
Mode of transportation	By Sea, By Air
Port of shipment	Shanghai or Ningbo
Rerfence date of delivery	About 15 days, Instant supply of hot-selling products

About Shipment

Certificate of Fumigation	√
Certificate of Original	CO, FORM A, FORM F, FORM E etc. Guarantee customer to import goods at the preferential tariff rate
Certificate of Inspection	√
Documents Authentication	√

After-sale Service
I. Agents Tranining
II. Warranty We provide one-year limited warranty for all machines from the date of purchase
1. Our warranty covers only those defects which arise as a result of normal use of the product, and the bellows not apply to any:
♦ Improper or inadequate maintenance
♦ Misusage and mishandling
♦ Damaged by a wrong voltage use
♦ Physical damage(for example, dropping the parts on the floor or into water, broken case, etc)
2. What is the repair, exchange & refund policy?
Exchange and refund only on big defective units (beyond repair).For buyers' used machines, we only can support repair service.
Repair: We provide free spare parts (just include the main board and motor) within the warranty period. Buyer should provide serial number and photos of defective machines, but buyer should pay the shipment charges and return us the broken parts.
Exchange: If you reported problem to us in one month on arrival of the machine, we accept the exchange. Buyer needs pay the ship back sea freight and the sea freight for new machine.
Refund: If you reported problem to us in one week on arrival of machines, we accept the refund, but we only refund you the payment after receiving the returned goods.
3. What about when one year warranty over time?
We still offer the repair service to you when the warranty time is over, even we can offer you the repair service in the whole life of machine.
4. How to support you when you purchase our machine in first time?
When you meet the problem of our machine under the situation that you are not familiar with our machines.
Do not worry, we can offer:
♦ User Manual in English
♦ Operation Video
♦ Support on-line
♦ You can send your technician to our factory to attend the skill training.
FAQ
1.What's the product range?
Post press machine,such as Perfect glue binder, paper cutter, Roll laminator, UV coator machine and
some small office equipment.
2.Are you a manufacture?
Yes, we are in Hangzhou which middle of shanghai and Ningbo
3.What is the minimum quantity for order?
5 pcs or 10000 USD for order.
4.Do you have stock product to sell?
Maybe , It's depend on which machine ,you like?
5.Do you inspect the finished products?
Yes, Each step of production products will be camed out inspection by QC department before shipping.
6.How do you ship the finished products?
By Sea
By Plane
By courier, TNT , DHL, Fedex, UPS Etc
7.What's the Payment term?
Payment term: T/T before shipment.
We accept payment via the Paypal /Western union/TT, you can choose as you like.
8.What's the delivery time?
Within 15 days after get the payment.
