Stc5052D Inclined Bed High Speed Slant Bed CNC Machine
| US$14,500.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
STC5052D
Application
Metal
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Condition
New
CNC System
GSK
Optional CNC System
Fanuc, Mitsubishi M80, Siemens, Knd, Nanjing Kt
Standard Chuck
Maunal Chuck
Optional Chuck
Hydraulic Chuck
Transport Package
Seaworthy Packing
Specification
2680*1695*1800 mm
Trademark
JT
Origin
China
HS Code
84589100
Production Capacity
1500sets/Year
Product Description
Product Parameters

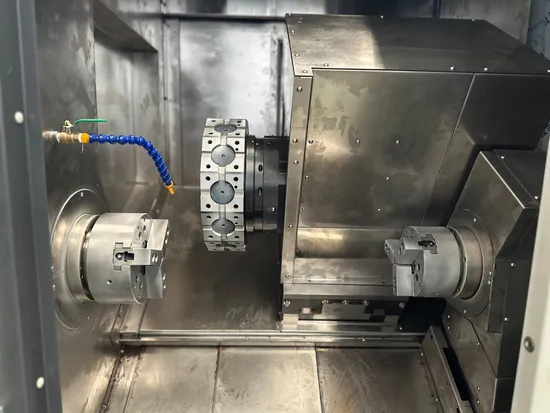

The STC5052D slant-bed CNC lathe features a one-piece cast bed and slant guide rails for excellent rigidity and vibration absorption,ensuring high-precision cutting.It uses an AC servo motor with a V-belt direct drive spindle for low noise.The spindle has precision high-speed bearings and a box-type support for high-speed operation.Equipped with a multi-position or powered turret, it can machine complex parts like cylinders,threads,slots,and worms,offering linear and arc interpolation for mass production.An optional high-rigidity hydraulic servo turret provides greater reliability and repeatability.
| ITEM | UNIT | STC5052D | |
| Maximum rotation diameter on the bed | mm | φ500 | |
| Maximum turning diameter on the slide | mm | φ300 | |
| Spindle | Spindle end type | A2-8 | |
| Spindle through hole diameter | mm | φ82 | |
| Maximum spindle speed | r/min | 1600 | |
| Diameter of the through hole of the drawn tube | mm | φ68 | |
| Chuck | inch | 10 | |
| Main motor | main motor power | kw | 15 |
| Two Axis | X/Z axis fast moving speed | m/min | 15/20 |
| X-axis travel | mm | 380 | |
| Z-axis travel | mm | 550 | |
| Tool holder | Tool holder form | Four workstations | |
| Knife Square | mm | 25*25 | |
| Tool bar diameter | mm | φ32 | |
| Accuracy | Precision | It6 | |
| Roundness of workpiece | mm | 0.005/φ70 | |
| Processing surface roughness | um | Ra1.6 | |
| X/Z repeat positioning accuracy | mm | 0.01/0.011 | |
| General Rules | Machine net weight | kg | 2800 |
| Machine tool dimensions | mm | 2680*1695*1800 | |
