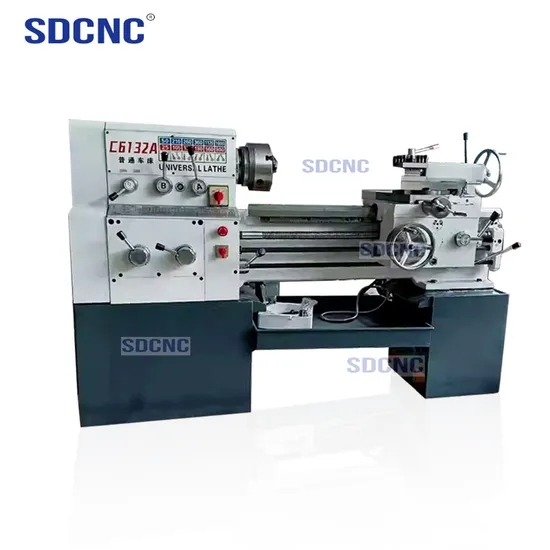

Lathe Machine C6132A Torno Metal Cutting Manual Lathe
| US$7,500.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C6132A
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Brand Name
Sdcnc
Model Number
C6132
Keyword
Horizontal Lathe
Keyword2
Manual Lathe
Transport Package
Wood Packing
Specification
1950X900X1300
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
175.00cm * 170.00cm * 210.00cm
Package Gross Weight
1850.000kg
Product Description
Product Parameters
Lathe Machine Feature:1. High-strength cast iron
2, the rail is high-frequency quenching, inlaid with high-quality wear-resistant pieces.
3, automatic centralized lubrication
4, the spindle box gear precision grinding, low noise.
5, more types of threads
6, electrical safety performance is good, high reliability.
7, with electromagnetic brake, bed color for a variety of options.Random attachments:1·3-jaw chuck
2·Exchange gear
3· Mohs 3 stays top
4·Mohs 5/3 reducer sleeve
5·Oil gun
6·Baffle plate
7·bed foot
8·Toolbox and tools
9·oil panOptional accessories:1· 4-jaw chuck + tray
2·Flower plate
3. Center frame
4. With the knife holder
5. Top activities
6. Drill chuck + drill clamp
7. Screw guard
8. Chuck cover
9. Digital display
10. Taper model
11. Cooling system
12. polished rod safety joint
13. Scheduled institutions
14. Two-axis digital display
15.·Quick change tool holder
| item | value | |||
| Condition | New | |||
| Model | C6132 | C6136 | C6140 | |
| Center height | 165 | 190 | 202 | |
| Max. swing over bed (mm) | 330mm | 370mm | 404mm | |
| Max. swing over carriage | 180mm | 200mm | 240mm | |
| Max. length of work piece | 750mm/1000/1500mm | |||
| Width of bed | 312mm | |||
| Section of turning tool | 20×20 | |||
| Turret rotation | ±45° | |||
| Spindle | Spindle speed | 20- 1600r.p.m(30-2000r.p.m) 12kinds | ||
| Hole through spindle | ∮46mm | |||
| Spindle taper | MT6 | |||
| Feed | X axis feed | 0.04-2.16mm/r 138kinds | ||
| Z axis feed | 0.02-1.08mm/r 138kinds | |||
| Range of metric threads | 0.45-20 mm/r 30 kinds | |||
| Range of inch threads | 80-1 n/1" 35kinds | |||
| Range of module threads | 0.25-10mm 25kinds | |||
| Range of diametral pitc threads | 160-3.5dp 30kinds | |||
| Tailstock | Max. tailstock spindle travel | 130mm | ||
| Tailstock spindle diameter | ∮60mm | |||
| Taper of tailstock spindle center hole | MT4 | |||
| Main motor | 4.5KW | |||
| Packing dimensions | Overall dimensions for 750mm | 2000×1000×1350 | ||
| Overall dimensions for 1000mm | 2250×1000×1400 | |||
| Overall dimensions for 1500mm | 2650×1000×1450 | |||
| Weight | Overall dimensions for 750mm | 1400kg | 1500kg | 1700kg |
| Overall dimensions for 1000mm | 1500kg | 1600kg | 1800kg | |
| Overall dimensions for 1500mm | 1700kg | 1750kg | 1950kg | |
| Warranty | 1 Year | |||
| | Online support, Video technical support Video technical support, Spare parts | |||
| Key Selling Points | Easy to Operate | |||
| Applicable Industries | Machinery Repair Shops, Construction works | |||
| Machinery Test Report | Not Available | |||
| Video outgoing-inspection | Provided | |||
| Warranty of core components | 1 Year | |||
| Core Components | Gearbox | |||
