Machine Tool Accessories Er Coolet Sealed /Coolant Collets Ers16/Er25s/ Er32s Collet Chuck with Cooling Channels

Product Description

DezhouHaotian lpm&exp Co.Ltd(Haotian machinery) is located in the largest production base of
machine tool accessories in China.We are specialized in researching,producing and developing many
kinds Of collets, drill chuck, CNC tool holders, retention knobs, ER nuts, ER spanners, machine vises,
parallel blocks and so on. With high precision and full varieties. All of our products are deeply trusted
by customers both at home and abroad.
We can Provide NON-standard custom of machine tool accessories
Machine Tool Accessories Sealed /Coolant Collets Ers16/Er25s/ Er32s Collet Chuck with
Cooling Channels

Product Description
\
1. All types of ER collets conform to the DIN 6499B StandardSturdy construction
2.Made of special elastic steel:65Mn
3.Hardness:HRC44-48
4.Mode:ER8-ER50
5.Accuracy:0.01mm, 0.015mm
6.Packaging:Paper case or plastic case
7. Used for boring, milling, drilling, tapping, grinding and engraving operation etc.

Coolant collets
Use the different of the groove to reach the surrounding water seal, only the funftion of the center outlet.
Order No.	D	L	d
ER11C-d	11.5	18	2--7
ER16C-d	16.74	27.5	2--10
ER20C-d	20.74	31.5	2--13
ER25C-d	25.74	34	2--16
ER32C-d	32.74	40	2--20
ER40C-d	40.74	46	3--26

Detailed Photos

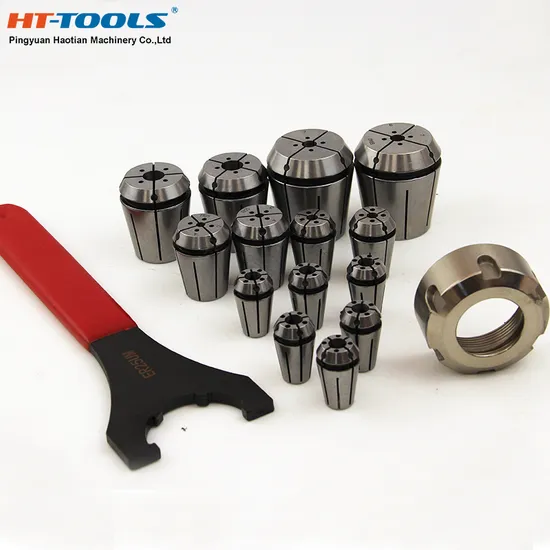

Product picture :
Other collets:
Our main production:
Machine tool Accessories, please check below to know our main items:
Tool Holder Shanks: BT Tool Holders, DIN69871 SK Tool Holders, NT Tooling, CAT30 CAT40 CAT50
Tool Holders, HSK Tool Holders, DIN 69880 VDI Tool Holders, Morse Taper, Straight Shank Tool Holders, etc.
Tool Holders: Collet Chucks, Milling Chucks, Face Mill Holders, Weldon End Mill Holders, Morse Taper
Adapters,Drill Chucks, Tapping Chucks, Shrink Chucks, Thread End Mill Tool Holders, Screw in Milling
Cutter Holders, etc.
Collet: ER Collets, ERC Collets, ERG Collets,Milling Chuck set ,Straight Collets, OZ Collets, etc.
Accessories: Tool Holder Bushing, Nut and Spanner, Pull Stud, Tool Holder Locking Device,Machine
Vise, Live Center etc.
FAQ
1.Are you factory or Trade Company?
We are Industry and trade integration.
2.Could you supply samples?
Yes, we can supply.
3.Where do you export?
The whole world.
4.Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.
5.What's the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.
6. What are the shipping ways?
By international express, by air, by sea are all ok.
7. Do you have minimum order quantity?
Conventional Products don't have. The minimum order quantity of non-standard products is 50pcs.
8. What's your payment way?
T/T, Pay pal, Western Union and so on.
9. What's your delivery time?
1-20 days after order confirmed
