Heavy Duty Electric Overhead Bridge Crane Single and Double Girder 5 to 10 Ton Capacity for Factory Workshop and Warehouse Durable Energy Saving Remote Control
| US$1,999.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LD/LDX/LH/QD/LX
Certification
CE, ISO9001
Condition
New
Operation Form
Remote Control
Maximum Lifting Height
<10m
Maximum Lifting Weight
150-200t
Main Girder Form
Single or Double Girder
Type
Beam
Product Name
Overhead Crane
Span
3m-35m
Max. Lifting Height
3m-16m
Control Method
Remote Control or Pendant Control
Power Supply
3 Phase AC 220-690V 50Hz/60Hz
Work Duty
A3-A8
Work Temperature
33~46 Degree
Lifting Mechanism
Electric Hoist
Electric Brand
Famous Brand
OEM/ODM
Available
Color
Yellow .Red . Orange or Customized
Running
Rails
Aftersale Service
Online Service
Crane Traveling Speed(M/Min)
5~20m/Min or 5~30m/Min or 5~40m/Min.as Your Reques
Feature
Bridge Crane
Transport Package
Standard Export Packing
Specification
0-200t
Trademark
VOHOBOO
Origin
Hubei, China
HS Code
8426112000
Production Capacity
5000sets Per Month
Product Description
Product DescriptionA. Single girder overhead crane Single beam overhead crane configuration is made up of a single bridge girder, two end carriages and a hoist with trolley,
which runs along the bottom flange of the bridge girder between the end carriages.
* It is widely used in industrial factory, warehouse, workshop, stock ground, workstation factory, goods yard etc.
* It looks like bridge, because both ends of girder are on the tall concrete column and metal support structure.
* It consists of metal structure, crane travelling mechanism, lifting mechanism, safety protection and operation. B.Double girder overhead craneDouble beam overhead crane configuration is made up of two bridge girders, two end carriages and a hoist with trolley.
The hoist travels on top of rails that are mounted to the top of bridge girders. It is widely used for transferring material,
goods equipment installation and maintenance in factory, power station, storeroom, warehouse etc.
Product Advantages
Product Parameters
| Iteam | Specifications | |
| Lift capacity(T) | 1T~100T (single girder or double girder) | |
| Crane span(M) | 3~28m according to your demands | |
| Lifting height(M) | 3~48m according to your demands | |
| Crane traveling speed(m/min) | 5~20m/min or 5~30m/min or 5~40m/min.As your request | |
| Electric hoist lifting speed(m/min) | European electric hoist (5/0.8 m/min double speed) | CD1 electric hoist(8 m/min) MD1 electrc hoist(8/0.8 m/min) |
| Hoist trolley speed(m/min) | 0-20 m/min | 20m/min or 8/20m/min |
| Remote control | F24-6D/F24-10D or F21-E1B etc, according to your demands | |

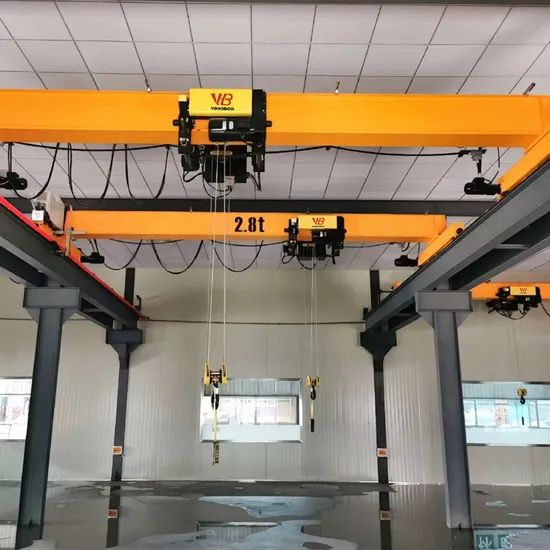

Product Real Shot
