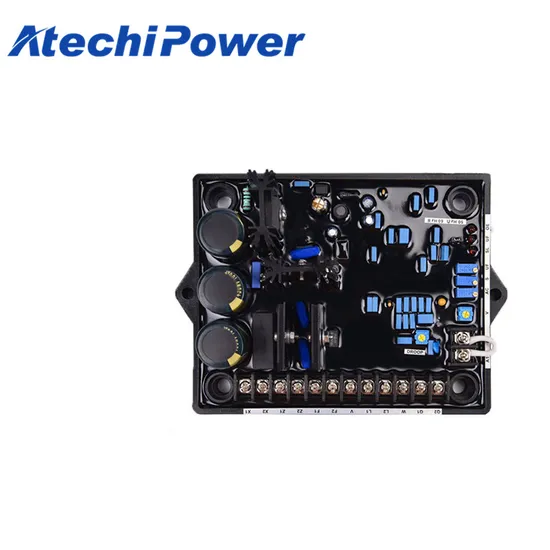

Replace Leroy Somer Voltage Regulator Genset AVR R180

Product Description

Product Description
The R180 is a fully solid-state automatic voltage regulator (AVR) which is used for excitation of a brushless alternator powered by a Permanent-Magnet (PMG) exciter or by auxiliary windings. The R180 has an accessory input, which can be used as a remote potentionmeter terminal when connected to a 1 KΩ potentionmeter or takes ± 4.5V DC in order to change the terminal voltage.
The AVR output is limited to 6A. This limiter is delayed type so that it does not interfere with field forcing. in the event of loss of thr sensing input. thr AVR provides 9A DC excitation current for 5 seconds and reduces the excitation current. The R180 is triggered from the alternator remanent voltage.

Product Parameters

Sensing input	3-ph/2-ph - 220/230/240/380/400/415 volts for 50 Hz 3-ph/2-ph - 208/240/277/380/416/440/480 volts for 60 Hz
Voltage range high	300V to 530V
Voltage range low	180V to 310V
Droop	1 and 5A AC in U phase
Droop range	8% droop at 0.8 PF
PMG input power	Continuous: 240V RMS +10% Momentary 5 s: 240V RMS + 30 Up to 240 Hz
AREP+ input power	Continuous: 250V peak+10% Momentary 10 s: 350V peak +5% - Up to 75 Hz
Excitation current	6A DC continuous 9A for 5 seconds (short-circuit operation)
Regulation	± 0.5% at AVR sensing terminals
Maximum excitation limit	6A DC (factory setting)
Maximum excitation limit delay	30 sec. (factory setting)
Under frequency protection	48.5 Hz/58.5 Hz for 50 Hz/60 Hz operation
Slope	1.2X (120%) V/Hz
Remote potentiometer	1 kOhm for ± 10% adjustment
Accessory Input	± 4.5V DC for ±15%
Temperature range	-25ºC to +70ºC
Thermal drift	0.5% for 20ºC change
Fuse	FST 10A 250V

Features
* Voltage regulation < +/-1%* Soft start voltage ramping* Sensing voltage loss protection* 120 or 240 Vac sensing, jumper selectable* Under frequency roll off protection* With under frequency LED indicator
