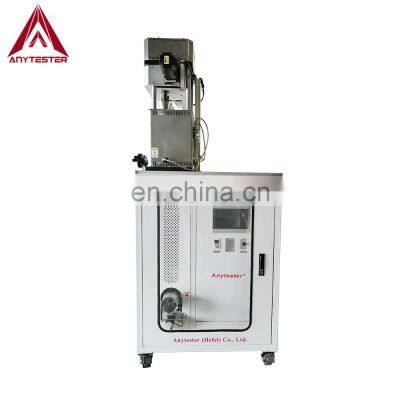

CE Certificate Lab Small Spinning Machine Dual Plunger Melt Spinning Machine

Product Description

Product Description
Product Description
AT226 Series Plunger-type Melt Spinning Machine is used to carry out the melt spinning of polypropylene, polyester, polyamide and other special materials with plunger metering system. The raw material melts and flows into the plunger-type cylinder. The plunger-type cylinder driven by the servo motor can precisely monitor and control the flow of melt liquid. The melt liquid passes through the filtering plate, distributing plate and then is extruded through the spinneret plate to spin. The spun fiber can be direct wound onto the winding roller.
Sketch for Dual-plunger Melt Spinning MachineNOTE: 1-Mixing part, coagulating bath, hot stretching and relaxing heat setting are optional.2-AT226A Single Plunger Melt Spinning Machine has a plunger metering part, but no mixing part while AT226B Dual Plunger Melt Spinning Machine has two plunger metering parts and mixing part.
Specification

Model	AT226B		AT226B
Number of plunger metering part	2		2
Material-feeding part
Structure	Screw feeder & driving motor Adjust screw speed to control feeding amount
Material	316L stainless steel
Designed capacity of stock bin	200ml
Power of driving motor	200W
Plunger metering part
Structure	Melting & metering
Cylinder material of plunger pump	306 stainless steel

Details
1. Material feeding part consists of screw feeder and driving motor. The amount of feeding material is adjustable by adjusting the feeding speed;2. Plunger metering and melting part: material is heated by heating hood to melt and then flows into the plunger-type cylinder. The forward of plunger is driven by the servo motor to precisely control the flow; multi-section temperature controlling, real-time display and control the inner pressure and the temperature of material;
3. Heating hood of cast copper with multi heating sections, rapid to heat and high heat efficiency;
4. Stainless steel winding roll, disassemble-able structure;
