Batch Chemical Reactor Stainless Steel Electric Heating Reactor

Product Description

10000 Liters Industrial Jacket Pressure Photocatalytic Chemical Reactor
1.Product Description

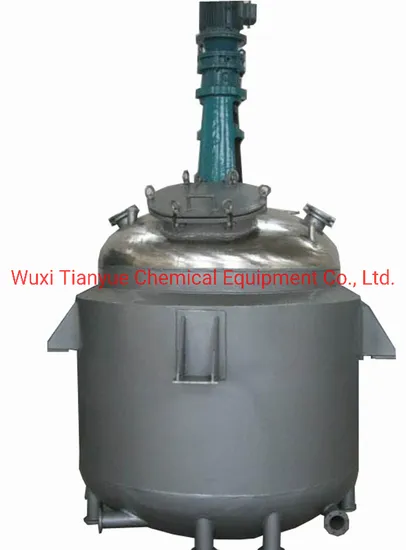

Wuxi Tianyue produces (electric, steam, oil heating) stainless steel/carbon steel reaction kettle composed of kettle lid, cylinder body, jacket, stirring machine, shaft-end conveying system and supporting bearings. Kettle body and ports that contact medium are all made of OCr18Ni9 or 1Cr18Ni9Ti acid-resistant stainless steel plates.
We are professional in manufacturing stainless steel reaction kettles and ready to undertake production of equipment in chemistry industry and non-standard equipment in light industry. Any inquiry is welcome.
The stirring methods of the kettle include traditional paddle stirring, turbo stirring, push stirring, anchor stirring, frame stirring, helical stirring and SAW disk stirring, etc.
We especially recommend high shear emulsifying reaction kettle, one combining frame stirring and high shear emulsifier and wall cleaner. The outstanding point of this reactor is the integration of dispersing, mixing, emulsifying, homogenizing and shredding, featured with super fineness, high quality and efficiency.
Specification:

Capacity(L)	Tube diameter	Jacket diameter Ømm	Motor Power KW	Reducer models	Stirring speed r.p.m
30	400	500	0.6-1.1	M2	60-80
50	500	600	0.6-1.1	M3	60-80
100	550	650	1.1-1.5	M4	60-80
150	600	700	2.2	M6	60-80
200	650	750	2.2	M6	60-80
300	800	900	2.2	M6	60-80
500	900	1000	2.2	M6	60-80
800	1100	1200	4	M8	60-80
1000	1200	1300	4	M8	60-80
1500	1300	1400	4	M8	60-80
2000	1400	1500	4	M8	60-80
2500	1400	1500	7.5	BLB7.5-4-13	90
3000	1400	1500	7.5	BLB7.5-4-13	90
3500	1400	1500	7.5	BLB7.5-4-13	90
4000	1500	1600	7.5	BLB7.5-4-23	63
5000	1600	1700	7.5	BLB7.5-4-23	63
6000	1800	1900	15	BLB15-5-13	100
8000	2000	2100	15	BLB15-5-13	100
20000	3000	3200	37	BLB450-11-45	50-100

Main Character:

Capacity	100-20000L
Design Pressure (Mpa)	Atmospheric Pressure or under pressure
Material	Carbon steel, stainless steel, enamel
Heating Forms	Electrical heating with medium in jacket, external half coil steam heating, external half coil thermal oil heating, hot water infrared heating etc.
Stirring Power	Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotating speed, paddle type, with or without baffle or internal coil.
Stirring blade Forms	Anchor type, frame type, paddle type, ribbon type, turbo type, turbine type, propelled and combination of different agitation forms
Seal	Mechanical seal, magnetic seal or packing seal
Inner Surface Treatment	Polished or no polished

2.production and testing equipment
3.Packaging & Shipping 1) Plywood case packing if necessery.
2) Packed by plastic bags if for very big machines.
3) Trade term: FOB or CIF.
4) Sea shipping.

4.About Payment Term
A------By T/T in Advance, or Irrevocable L/C as Sight.
Our machines can be customized, leave an inquiry to know more details about price, packing and shipping.
