Good Price! ! ! Diesel Excavator New Chinese 388h Mini Small Excavator Tractor Wheel Best Backhoe Loader with Towable for Low Price

Product Description

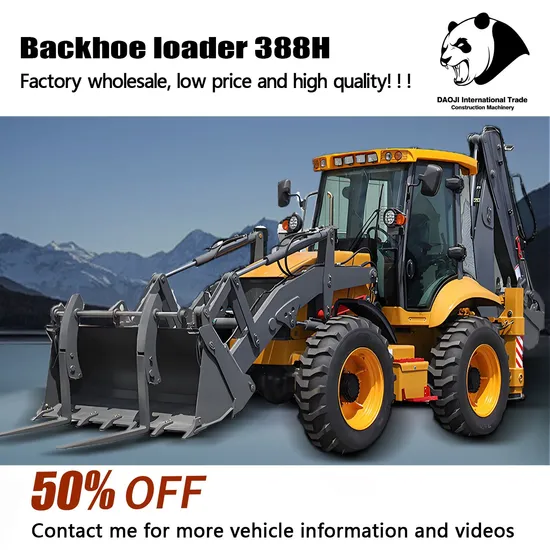

388H backhoe loader
Equipped with an 85kw YUCHAI engine JCB same type boom The maximum excavation depth is 5070mm,
Maximum loading height 3740mm Manipulate hydraulic synchronous shifting High definition LCD display screen
Openable rear windshield window With sunshade curtains Fire Extinguisher Fuel tank sensor
Reverse camera air conditioner 4X4 4F/4R

otal length(bucket at ground)		6400±80mm
(Total width )		2450±20mm
Bucket width)		2380mm±20mm
Total height (cabin top)		3250±10mm
Total height (digging boom top)		3740 ±20mm
Wheel base)		2250±10 mm
Wheel tread)		2000 ±10mm
drive)		4X4
Ground clearance)		410mm
Load main technical parameter)
Rated load)		2500KG
Operating weight)		9300kg
Rated bucket capacity)		1.2m³
Max. Dumping height (41o dumping angle)		3050±50 mm
Dumping distance)		700±20 mm
Turning radius)	Tires outside	5750±50mm
Digging main technical parameters)
Rated digging bucket capacity)		0.3m³
Max. Digging depth)		5070±20 mm
Max. Digging radius)		5345±20mm
Max. Loading height)		3740±20mm
Max. Digging force)		5100kgf
Max.Digging height)		5470 ±20mm
Lifting force at Max. Digging radius)		1220kg
Transmission

Hydraulic torque convertor	Model	280
	Cooling way	Pressured oil circle
Gearbox)	Type	Mechanically Operated Hydraulic Synchronized Shift
Driving axles	Model	Four-wheel drum brakes E110
Gear shift		4 F, 4 R Forward 4 Backward 4
Tyres model		16.9-28
Hydraulic system )
Working pump displacement)		63ml/r
Working pump pressure		20Mpa
Diverter model		BZZ5-250
Digging attachments(hydraulic hammer)
Rod diameter mm		68-70
Working pressure Mpa		11-14
Impact frequency		500-900
Flow scope L/min		25-45
kinetic energy KN		49
Oil capacity
Hydraulic oil tank		125
Fuel tank		125
388H Standard Configuration
Engine		Yuchai; GUOII
Driving Cab		high strength
Air Conditioner		mechanical control
Rear View Camera RVC		HD reversing image
Gear Box		Green chi
Driving Axle		Green chi
Hydraulic Pump		Weichai transmission control
Steering gear & Priority Valve		Shandong Pengli
Hammer Line		Reserved
Side Shift		Hydraulic
Tires		16.9-28
