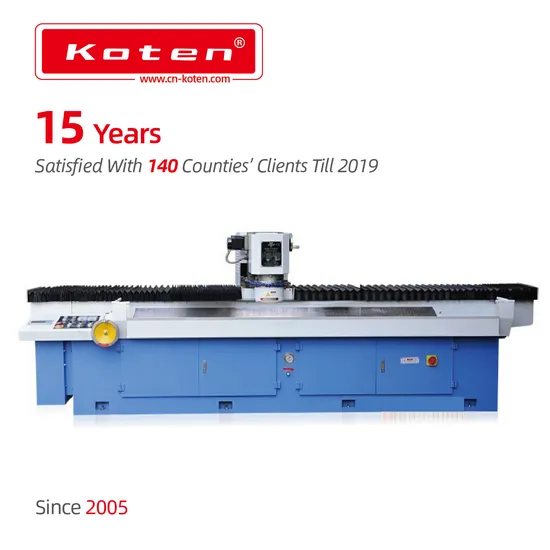

Knife Grinding Machine for Paper Cutting Blades (MSQ-B Series)
| US$8,000.00-15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
MSQ-B
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
End Cylindrical Grinder
Precision
High Precision
Certification
GS, ISO 9001
Condition
New
Workers Requirement
1-2
PLC Touch Screen Control
No
Magnetic Working Table
Yes
Grinding Wheel
White/Black/Diamond
Transport Package
By strong wooden case.
Specification
Export Standard
Trademark
Koten
Origin
China
Production Capacity
30set/month
Product Description
Samples After Grinding.
Introduction.
MSQ-B Series Knife Grinding Machine is a new product developed in 1990s, which integrates various characteristics of MSQ-A series. Additionally, it is added with electromagnetic attraction, vertical adjustment for grinding-head and other now technologies. It is applicable to grind various angles and blades in different materials promptly and perfectly. The knife edge after grinding is sharp and the effect of paper-cutting is more obvious.
Main Specifications.
| No. | Description | Specification & Type | ||
| MSQ-1650A | MSQ-2200A | MSQ-2700A | ||
| 1 | Max. grinding length | 1700mm | 2200mm | 2700mm |
| 2 | Size of grinding wheel | 200X100X100 | ||
| 3 | Width of grinding blade | 180mm | ||
| 4 | Rotation angle of worktable | ± 90° | ||
| 5 | Moving speed of grinding-head | 4.5M /minute | ||
| 6 | Grinding-Head Motor Power | 3KW | ||
| 7 | Grinding Motor Speed | 145rpm | ||
| 8 | Feed Motor Power | 0.55KW | ||
| 9 | Cooling Motor Power | 125W | ||
| 10 | Grinding Wheel Attached specification | |||
| A. Type and Code | White corundum WA Cup type | |||
| B. Hardness | K | |||
| C. Granularity | 46# | |||
| 11 | Overall dimensions (LxWXH) | 220X85X145cm | 270X85X150cm | 350X90X150cm |
| 12 | Machine Weight | 950kg | 1100kg | 1800kg |
| No. | Description | Specification Type | ||
| MSQ-1650B | MSQ-2200B | MSQ-2700B | ||
| 1 | Max. grinding length | 1700mm | 2200mm | 2700mm |
| 2 | Size of grinding wheel | 200X100X80 | ||
| 3 | Width of grinding blade | 180mm | ||
| 4 | Rotation angle of worktable | 0~± 90° | ||
| 5 | Moving speed of grinding-head | 4.5-6.5M/minute | ||
| 6 | Grinding-Head Motor Power | 3KW | ||
| 7 | Grinding Motor Speed | 145rpm | ||
| 8 | Feed Motor Power | 650W/850W | ||
| 9 | Cooling Motor Power | 125W | ||
| 10 | Grinding Wheel Attached specification | |||
| A. Type and Code | White corundum WA Cup type | |||
| B. Hardness | J | |||
| C. Granularity | 46#-60# | |||
| 11 | Overall dimensions (LxWxH) | 220X85X145cm | 270X85X150cm | 320X90X150cm |
| 12 | Machine Weight | 1000kg | 1150kg | 1850kg |
Packaging and Container Loading.
Koten Brand Machines In The Clients' Factory.
