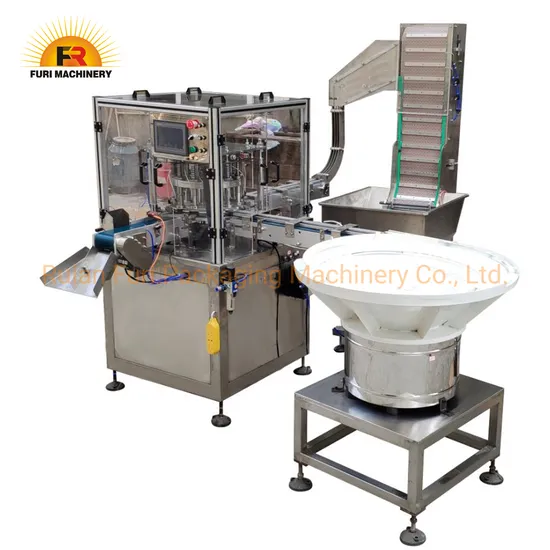

Automatic Cap Assembly Machine for Edible Oil Bottle Cap

Product Description

FRTB-ZH1 Oil Cap Combination/Combining Machine
Machine Features
1.Instead of Manual work,this machine can auto assembly aluminum caps with cork and folding in one machine,It increase production efficiency.
2.The machine can assembly 2 parts at speed of 4000-5000 pcs per hour,much fast and clean..
3.Especially for the products need to meet high requirements on the sanitary condition,it can avoid second-pollution.
4.Automatic Counting device installed, which you can preset the quantity per package,when it reach the quantity, the machine can stop automatic, it can increase your working efficiency and accuracy.
5.Adopts Auto vibrator sorter and feeder, which can make the dis-ordered caps in order and in correct direction, to ready the caps for main machine.
6.The Electric control system we use Variable Frequency Control Technology ,which is much more easy operate,stable,widely used, and longer using life.
7.This machine meet "GMP"and "CE" standards.
Structure of Equipment
Automatic cap sorting machanism: it puts the messy bottle cap in order and makes all cap mouth upwards
Cap delivering amchanism: it delivers the ready cap into the cap assembly machanism in order and correct way.
Cap assembly machanism: it combines 2 pieces and completes the assembly process.
2. Technical Parameters:

Productivity speed	5000 caps per hour( according to the cap size)
Power	1.5 kw+0.5kw
Compress air	0.5m3/hour-8kg pressure
Dimension(LxWxH)	2000mm×2000mm×1500mm
Weight	800KG

Our Factory
MACHINE PACKAGE We customize all kinds of non-standard bottle cap processing equipments:
More Details , Kindly contact us.
